H1066SC European Concealed Soft-Close Clip-on Hinge

Recommended Main Version: W40 Clip-on Version｜Approx. 90–100° Opening Angle｜Full Overlay / Half Overlay / Inset

H1066SC is a European-style concealed soft-close hinge designed for kitchen cabinets, wardrobes, bathroom cabinets, display cabinets, and system cabinet doors. The soft-close mechanism slows down the door during closing, reducing impact noise and door rebound while improving the overall user experience.

The recommended main version on this page is the W40 Clip-on Version, suitable for thicker doors, wider doors, larger cabinet doors, and applications requiring higher load stability. The clip-on structure improves installation efficiency, door removal, maintenance, and on-site adjustment, making it especially suitable for system cabinet projects, construction projects, and fast installation environments.

Three major versions are available:
・W40 Clip-on Version: Recommended main version for efficient installation, maintenance adjustment, and thicker door applications.
・W40 Standard Version: Suitable for thicker doors, larger doors, and higher load requirements.
・W35 Standard Version: Suitable for standard cabinet doors and common system cabinet applications.

Available arm types:
・Full Overlay
・Half Overlay
・Inset

The opening angle is approximately 90–100°, suitable for common residential cabinets, commercial cabinets, and system cabinet applications.

※ Product photos are for version and arm-type reference only. Actual plating color, base plate design, clip-on structure, screw configuration, and packaging may vary depending on confirmed order specifications and production batches.

Quick Selection Guide

For the main recommended specification with better installation and maintenance efficiency → choose the W40 Clip-on Version.

For thicker doors, larger doors, wider doors, or higher load requirements → choose W40 first.

For standard cabinet doors, wardrobes, and kitchen cabinets → choose the W35 Standard Version.

For quiet closing, reduced impact noise, and a premium user experience → choose the H1066SC soft-close hinge.

For fast door removal, gap adjustment, or future maintenance → the W40 Clip-on Version is the best choice.

Available Versions

Version	Positioning	Recommended Applications	Available Arm Types
W40 Clip-on Version	Recommended Main Version	Thicker doors, wider doors, larger cabinet doors, construction projects, and cabinets requiring fast installation and maintenance adjustment.	Full Overlay / Half Overlay / Inset
W40 Standard Version	High-Load Standard Version	Thicker doors, larger doors, and higher load requirements where clip-on function is not required.	Full Overlay / Half Overlay / Inset
W35 Standard Version	Standard Cabinet Door Version	Standard system cabinets, wardrobes, kitchen cabinets, bathroom cabinets, and regular cabinet doors.	Full Overlay / Half Overlay / Inset

H1066SC Key Specifications

Product Type	European concealed soft-close clip-on hinge
Recommended Main Version	W40 Clip-on Version
Opening Angle	Approx. 90–100°
Arm Types	Full Overlay Half Overlay Inset
Versions	W40 Clip-on Version / W40 Standard Version / W35 Standard Version
Soft-Close Function	Built-in soft-close mechanism for smooth closing, reduced impact noise, and less door rebound.
Clip-on Advantage	Allows quick door removal and reinstallation, making installation, adjustment, maintenance, and replacement more efficient for project and system cabinet applications.

Cup Diameter and Version Configuration

Version	Cup Diameter Positioning	Recommended Use
W40 Clip-on Version	φ40 mm Recommended Main Version	Thicker doors, wider doors, large cabinet doors, efficient installation, on-site adjustment, and future maintenance.
W40 Standard Version	φ40 mm High-Load Standard Version	Thicker doors, large cabinet doors, and higher load requirements without the need for clip-on function.
W35 Standard Version	φ35 mm Standard Cabinet Door Version	Standard system cabinets, wardrobes, kitchen cabinets, bathroom cabinets, and standard-thickness doors.

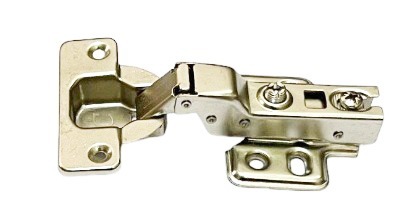

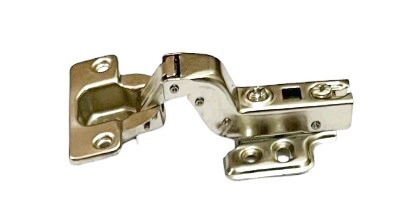

Hinge Arm Type Display｜W40 Clip-on Version（Recommended Main Version）

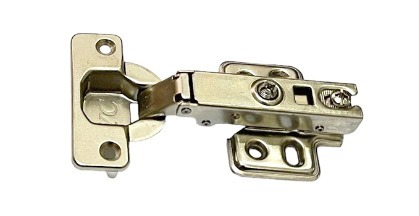

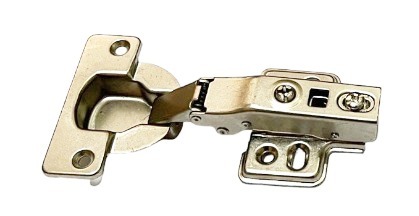

Hinge Arm Type Display｜W40 Standard Version

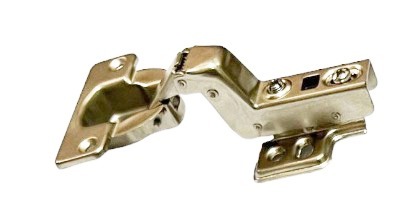

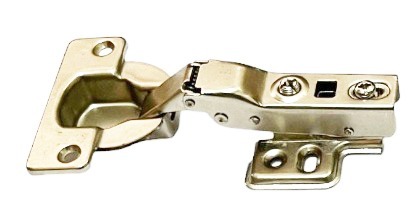

Hinge Arm Type Display｜W35 Standard Version

Product Features

• H1066SC adopts a soft-close design for smooth closing, reduced impact noise, and less door rebound.

• The W40 Clip-on Version is the recommended main version for thicker doors, larger doors, and cabinets requiring efficient installation and maintenance.

• The clip-on structure allows fast door removal, easier on-site installation, door gap adjustment, maintenance replacement, and future servicing.

• Three arm types are available for Full Overlay, Half Overlay, and Inset cabinet door configurations.

• The W40 Standard Version is suitable for higher load door applications, while the W35 Standard Version is suitable for standard system cabinets and regular cabinet doors.

• The hinge body is finished with anti-rust plating treatment for a clean appearance, stable installation, and durable daily use.

Applications

• Kitchen cabinets, wardrobes, bathroom cabinets, appliance cabinets, display cabinets, office cabinets, and system cabinet doors.

• Suitable for wooden doors, MDF panels, laminated panels, and common system cabinet boards.

• The W40 Clip-on Version is suitable for project installations, system cabinet projects, and applications requiring fast removal and future maintenance.

• The W35 Standard Version is suitable for residential cabinets, standard cabinet bodies, and mass-production furniture.
