| Item |
Description |

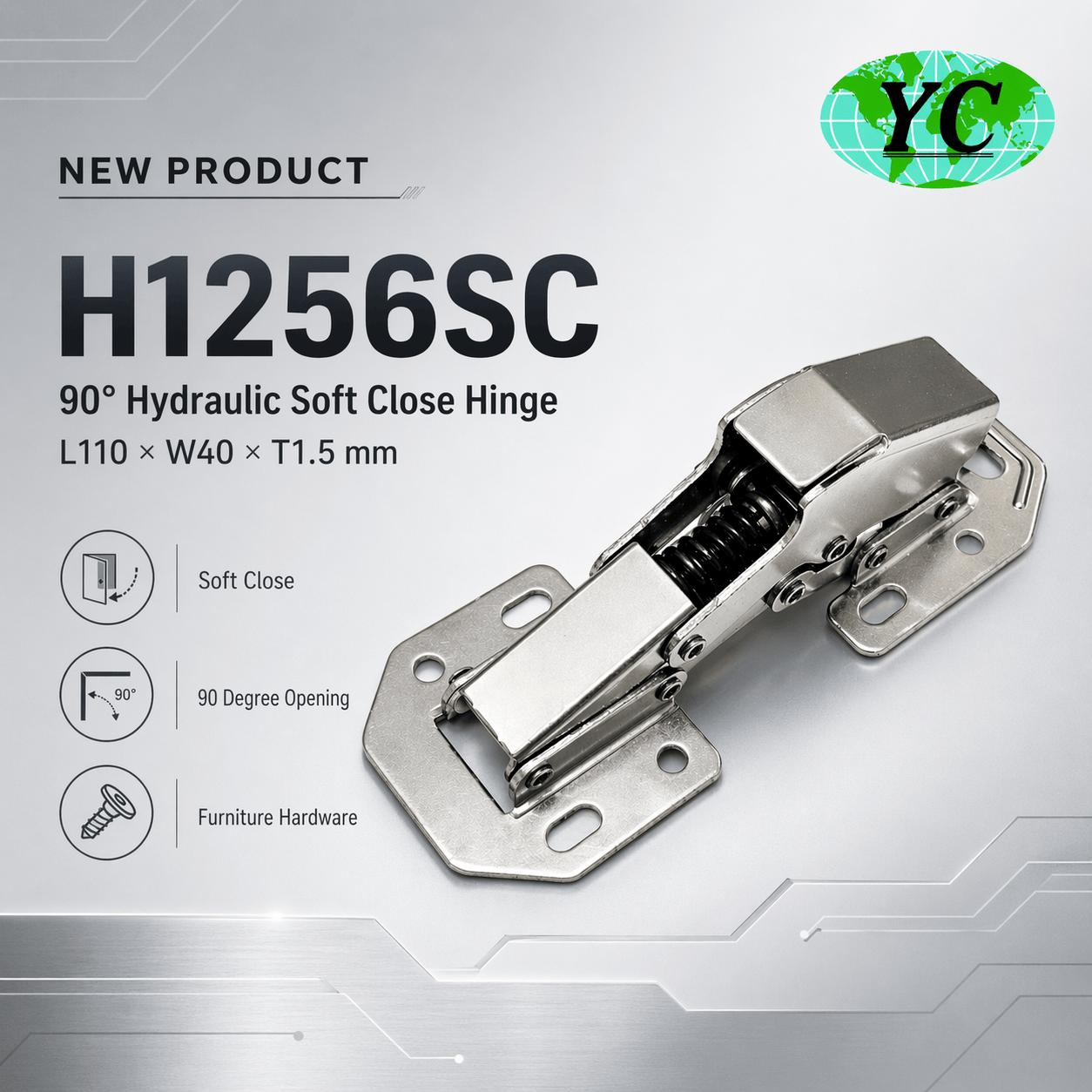

| Product Name |
Hydraulic Soft Close Hinge |
| Specification |
L110 × W40 × T1.5 mm |
| Opening Angle |
90 Degrees |
| Function |
Hydraulic soft close function to reduce door impact and closing noise |
| Application |
Furniture doors, cabinet doors, storage cabinets, display cabinets, and special 90-degree door structures |
| Feature |
Details |
| Product Type |
90 degree hydraulic soft close hinge for furniture and cabinet applications. |
| Soft Close Mechanism |
The built-in hydraulic damping structure helps reduce closing impact, minimize noise, and improve the user experience. |
| Metal Structure |
Exposed metal hinge body with mounting plates and multiple fixing holes for installation adjustment. |
| Size |
Length 110 mm, width 40 mm, thickness 1.5 mm. |
| Recommended Use |
Suitable for light to medium-duty furniture doors, cabinet doors, wooden panels, and special furniture structures requiring a 90-degree opening angle. |
| Application |
Description |

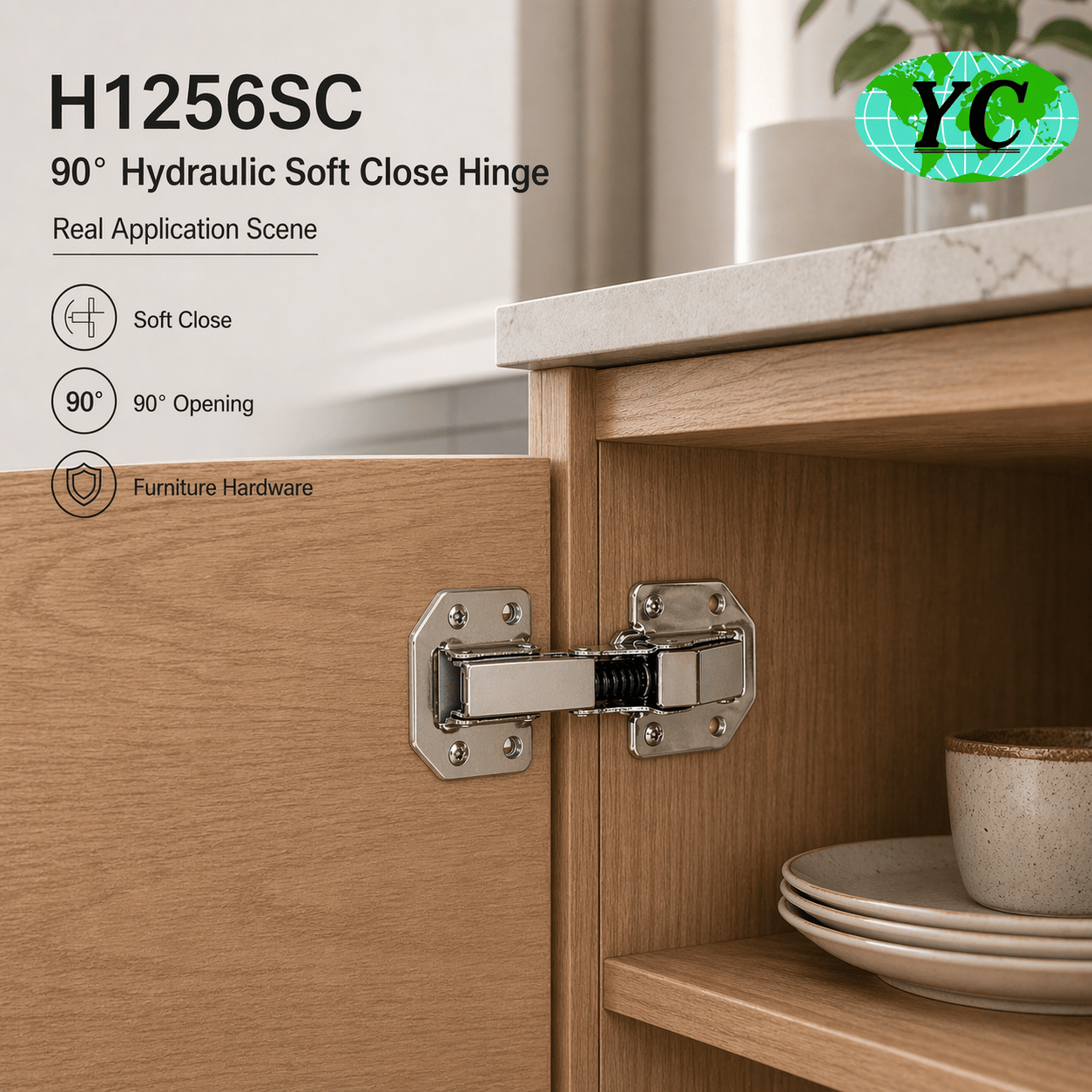

| Cabinet Doors |
Suitable for cabinet doors, storage cabinets, display cabinets, and furniture doors that require a soft close function. |
| 90 Degree Door Structures |
Designed for furniture structures where the door opening angle needs to be limited to approximately 90 degrees. |
| Light to Medium-Duty Furniture |
Can be used on wooden panels, plywood, system furniture boards, and similar cabinet structures. |
| Installation Notes |
Actual suitability should be confirmed according to door weight, panel thickness, hole position, and installation structure. |
| Limitations |
Not recommended for heavy-duty doors, high-frequency commercial doors, outdoor exposure, or high-humidity and high-salt environments without prior testing. |
Disclaimer:
The product information is based on the specifications currently provided. Actual dimensions, hole distance, surface finish, material, load capacity, and installation performance should be confirmed with physical samples, technical drawings, or official product specifications before bulk purchase or installation. Minor differences in color, size, appearance, or surface finish may occur due to production batches, plating conditions, tooling tolerance, or material variation. Before installation, users should verify door weight, panel thickness, hole position, usage frequency, and operating environment. This product is not recommended for heavy-duty doors, high-frequency commercial use, outdoor exposure, high-humidity areas, high-salt environments, or special safety-related applications without prior testing. Users are responsible for confirming proper installation, legal compliance, and safe application.
