| Size | Overall Length (L) | Hole Count | End Distance (E) | Continuous C.C. |
|---|---|---|---|---|
| L | 457 mm | 3 | 51 mm | 175 mm × 2 |
| M | 305 mm | 3 | 51 mm | 101 mm × 2 |
| S | 152 mm | 2 | 51 mm | 50 mm × 1 |
-

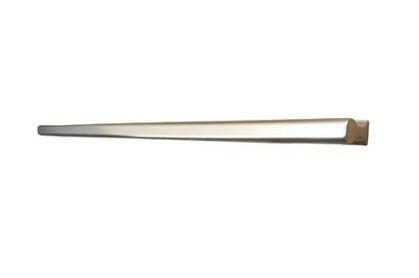

K2793L
L457*C,C51~175-175MM*H19.3*W13.5 -

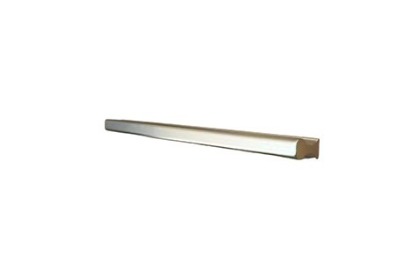

K2793M
L305*C,C51~101-101MM*H19.3*W13.5 -

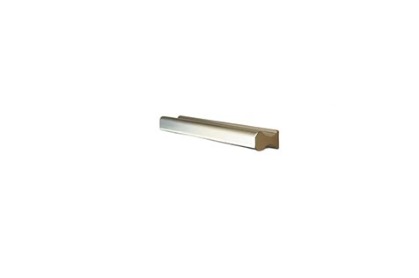

K2793S
L152*C,C50~51MM*H19.3*W13.5
|
Size |
Overall Length (L) | Hole Count | End Distance (E) | Continuous C.C. |
|---|---|---|---|---|
| L | 457 mm | 3 | 51 mm | 175 mm × 2 |
| M | 305 mm | 3 | 51 mm | 101 mm × 2 |
| S | 152 mm | 2 | 51 mm | 50 mm × 1 |
Back Hole Coordinates (measured from left end)
| Size | Hole Coordinates (mm) | Notes |
|---|---|---|
| L | 51 / 226 / 401 | E=51; equal C.C. 175 × 2 |
| M | 51 / 152 / 253 | E=51; equal C.C. 101 × 2 |
| S | 51 / 101 | E=51; equal C.C. 50 × 1 (two holes) |
- Uniform section (H19.3 × W13.5 mm) for consistent grip.
- Continuous equal hole spacing for retrofit-friendly installation.
- Clean, modern aesthetic suitable for minimal and soft-lux interiors.
Note: C.C. = center-to-center; E = distance from end to nearest hole center. Follow actual part for drilling.
Applications / Environments
- Spaces: system cabinets, wardrobes, storage units, shoe cabinets, sideboards, TV consoles, office cabinets, kitchen drawers and doors.
- Environment: normal indoor dry or typical kitchen use (approx. corrosion class C1–C2).
- Not recommended: outdoor/semi-outdoor, shower steam zones, pools/SPAs, coastal high-salt spray, chemical or heavy-grease areas.
- Panels: common cabinet thickness 16–22 mm; validate pull-out strength first on special substrates (solid wood, aluminum honeycomb, glass-clad, etc.).
Disclaimer
- Dimensional and hole-spacing tolerances apply; final acceptance is based on production parts and drawings.
- This product is a cabinet pull, not a load-bearing or grab component; avoid over-spec use and lateral impact.
- Use neutral detergent and soft cloth for care; strong acids/alkalis, solvents, and abrasives may cause dulling or scratches and are not covered by warranty.
- High humidity/salt spray or chemical vapors may accelerate discoloration/pitting; specify materials/coatings for special environments in advance.
