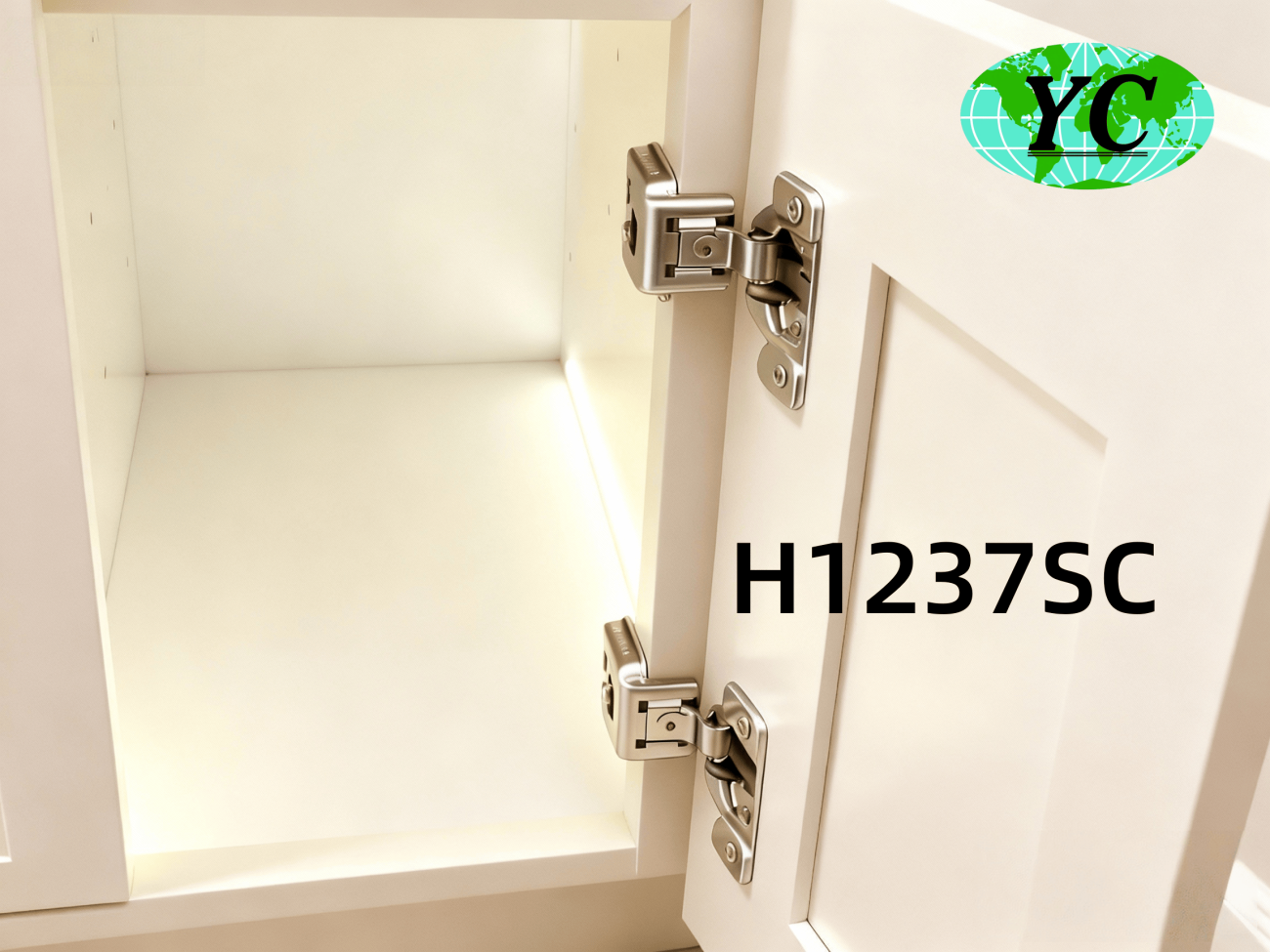

Product Overview
| Item | Description |
|---|---|

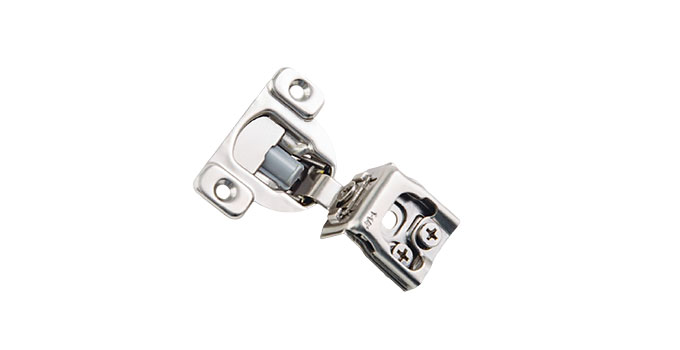

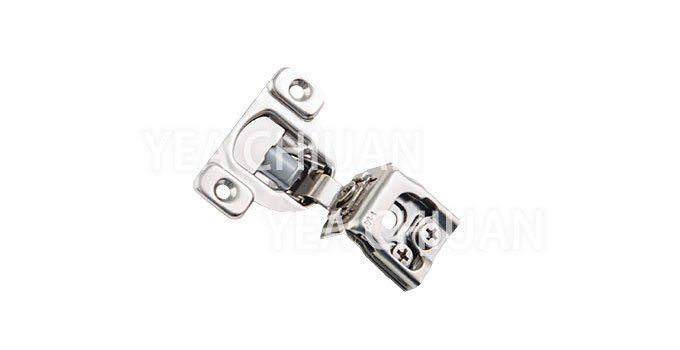

| Product Name | American Hydraulic Soft-Close Hinge |
| Cup Diameter | Ø35 mm |
| Opening Angle | 105° |
| Surface Finish | Standard zinc-plated color |
| Structure Type | Hidden mounting with hydraulic damping system |
Product Overview
| Item | Description |
|---|---|
| Product Name | American Hydraulic Soft-Close Hinge |
| Cup Diameter | Ø35 mm |
| Opening Angle | 105° |
| Surface Finish | Standard zinc-plated color |
| Structure Type | Hidden mounting with hydraulic damping system |
Product Specifications
| Specification | Details |
|---|---|
| Cup Diameter | Ø35 mm (standard concealed cup size) |
| Cup Depth | Approx. 11.5 mm, compatible with standard drilling depth |
| Door Thickness Range | 14–22 mm |
| Opening Angle | 105°, smooth hydraulic damping motion |

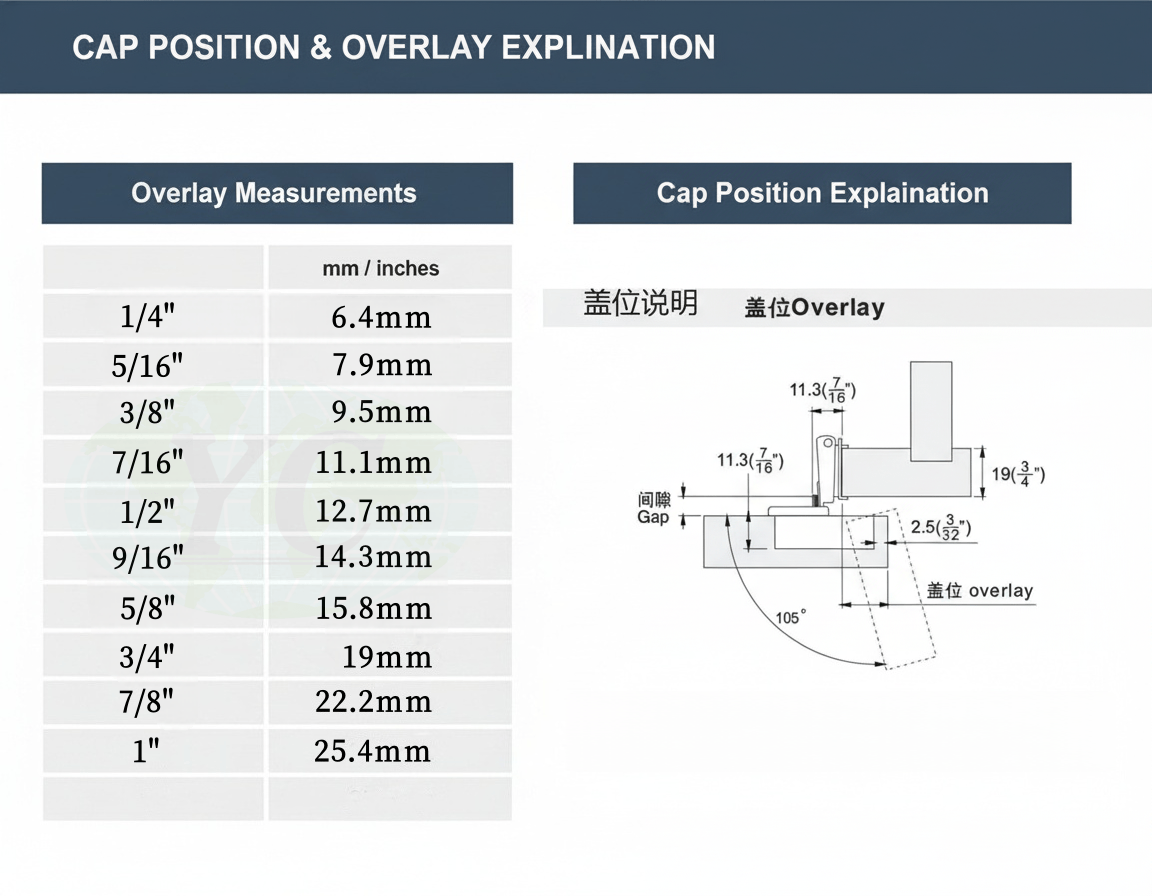

| Mounting Type | Full overlay / Half overlay / Inset (three mounting options) |
| Damping System | Built-in hydraulic soft-close cylinder for noise-free operation |
| Surface Finish | Standard zinc-plated coating, rust-resistant and durable |
| Adjustment | 3-way micro-adjustment: up/down, left/right, in/out |
Available Size Options
| Size | Recommended Application | Description |
|---|---|---|
| 1/2" | Light cabinet doors | Flexible for compact or lightweight structures |
| 3/4" | Bathroom or small furniture doors | Stable opening and closing motion |
| 1" | Standard kitchen cabinets | Strong support and smooth operation |
| 1-1/4" | General cabinet doors | Most popular and widely compatible size |
| 1-5/16" | Thicker or double-layer doors | Enhanced strength and better alignment |
| 1-1/4" Reinforced | Heavy-duty or frequent-use furniture | Reinforced hinge structure for long-term durability |
Applications
| Application Area | Key Features |
|---|---|
| Kitchen Cabinets | Soft-closing design prevents impact and ensures silent performance. |
| Bathroom & Mirror Cabinets | Moisture-resistant plating suitable for humid environments. |
| Wardrobes & Storage Units | Supports medium to thick doors with stable motion. |
| Display Cabinets | Hidden hinge structure keeps furniture lines clean and elegant. |
| Custom Wood Furniture | Ideal for wall cabinets, shoe racks, and entrance furniture. |
Disclaimer
Product specifications are for reference only. Actual dimensions and finishes may vary slightly due to production batches or tooling adjustments.

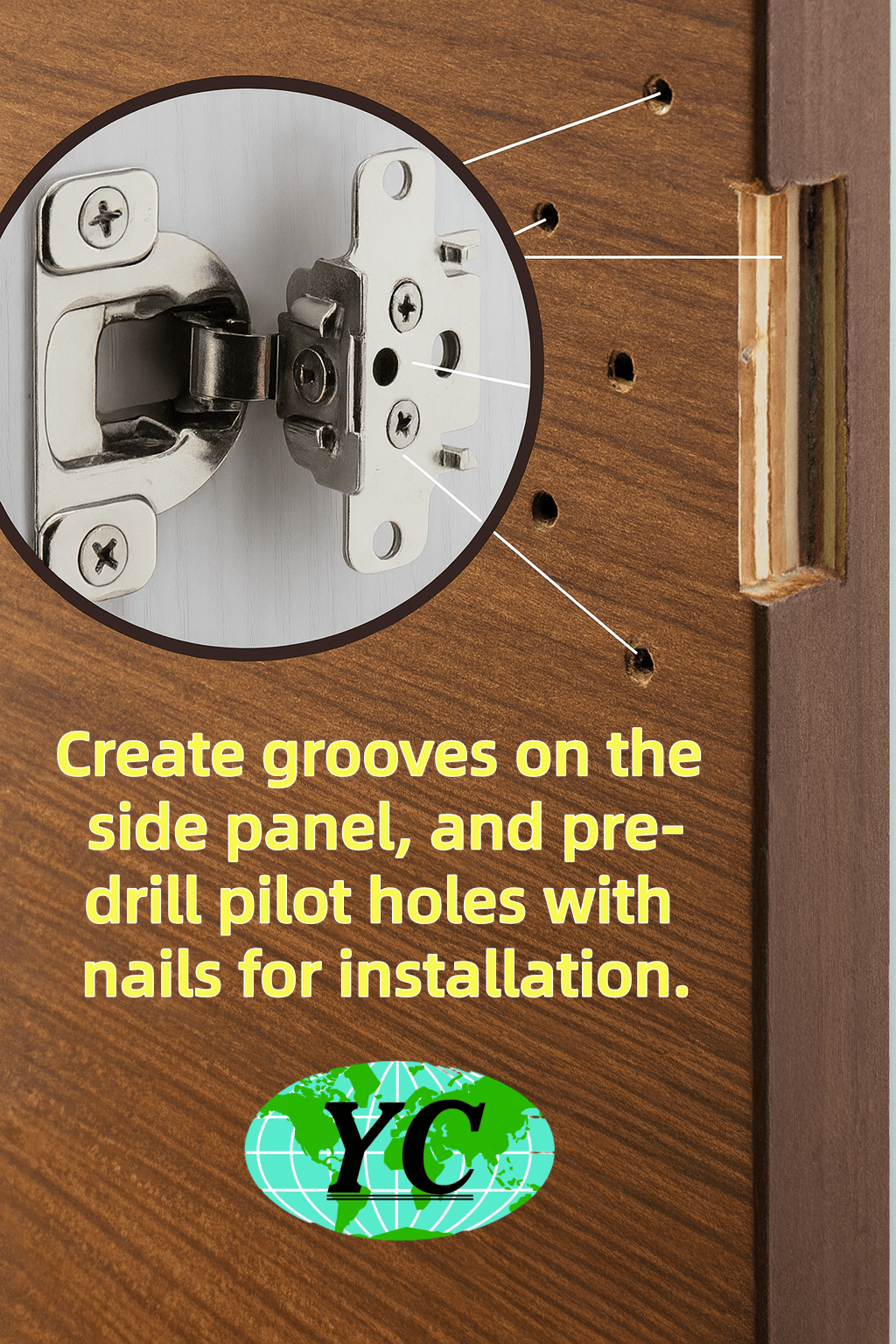

Please verify door thickness, drilling depth, and baseplate compatibility before installation.
The hydraulic damping system is a precision mechanism. Do not disassemble or modify internal parts.
Avoid installation in environments with high humidity, heat, or corrosive substances to maintain best performance.
All installation and maintenance should be carried out by professionals. Regular inspection of screws and moving parts is recommended.
Images are for illustrative purposes only. Actual products may differ slightly.
The company reserves the right to modify product design, specification, and surface finish without prior notice.
