| Category | Type | Opening Angle | Cup Diameter | Mounting Base | Main Features |
|---|---|---|---|---|---|
| Standard Hinge | Full Overlay / Half Overlay / Inset | 165° | φ35 mm | Fixed 4-Hole Base | Non-soft-close, Stable Construction, Long Durability |
165° Cabinet Hinge Series
H1230 Standard Hinge (Non-clip) ｜ H1241SC Soft-close Hinge (Clip-on)
This 165-degree hinge series is designed for wide-opening applications such as corner cabinets and built-in furniture. It provides three arm types (Full Overlay, Half Overlay, and Inset) for flexible installation. Model H1230 is a standard hinge with a fixed four-hole base, while model H1241SC features an integrated soft-close hydraulic damper and quick clip-on base for smooth and silent operation.

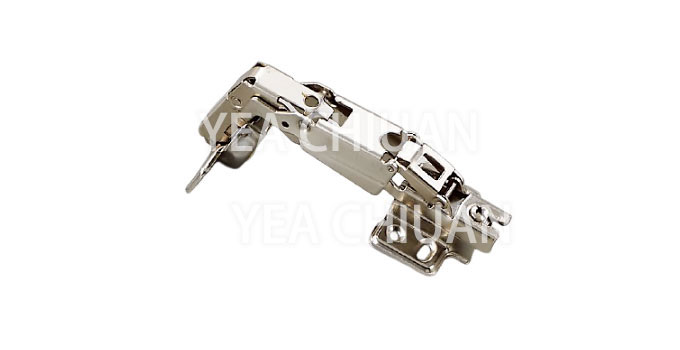

Available in three arm types (Images shown using H1241SC as example)
-
Full Overlay / Straight Arm -
Half Overlay / Crank Arm -
Inset / Large Crank
| Model | Type | Base Plate | Main Feature | Opening Angle | Cup Diameter |
|---|---|---|---|---|---|
| H1230 | Standard Hinge | Fixed 4-hole Base | Non-soft-close, durable and stable structure | 165° | φ35 mm |
| H1241SC | Soft-close Hinge | Clip-on 4-hole Base | Hydraulic soft-closing system for smooth operation | 165° | φ35 mm |
| Feature | Description |
|---|---|
| 165° Wide Opening | Designed for corner cabinets or large door panels, allowing full accessibility. |
| Multiple Arm Options | Available in Full Overlay, Half Overlay, and Inset types to fit various cabinet depths. |
| Corrosion-resistant Steel | Made of reinforced steel with anti-rust plating, ensuring long-term durability. |
| Soft-close System (H1241SC) | Built-in hydraulic damper automatically reduces door impact and noise. |
| Fixed Base Design (H1230) | Stable four-hole mounting plate without clip-on function, suitable for budget-conscious applications. |
| Application | Description |
|---|---|
| Home Furniture | Ideal for kitchen cabinets, wardrobes, and bathroom furniture. |
| System Cabinets & Office Furniture | Suitable for modular and on-site installation projects, ensuring smooth door alignment. |
| Commercial Display Units | Perfect for glass or wooden cabinet doors in retail and exhibition use. |
