| Model | Category | Type | Opening Angle | Cup Diameter | Mounting Base | Main Features |
|---|---|---|---|---|---|---|
| H1230 | Standard Hinge | Full / Half / Inset (Large Crank) | 165° | φ35 mm | Fixed 4-hole base | Non-soft close, non-clip-on, durable structure |
| H1241SC | Soft-Close Hinge | Full / Half / Inset (Large Crank) | 165° | φ35 mm | 4-hole clip-on base | Soft-close, silent motion, detachable mount |
| H1228 | Raised Plate Hinge | Inset (Large Crank, Raised Base H=9 × 2-hole) | 165° | φ35 mm | Fixed 2-hole base | Non-soft close, fixed, raised clearance design |
165° Cabinet Hinge Series
H1230 Standard Hinge (Non-clip) ｜ H1241SC Soft-close Hinge (Clip-on) ｜ H1228 Standard Hinge (Inset Large Crank ｜ Raised Plate H=9 ｜ 2-Hole Base)

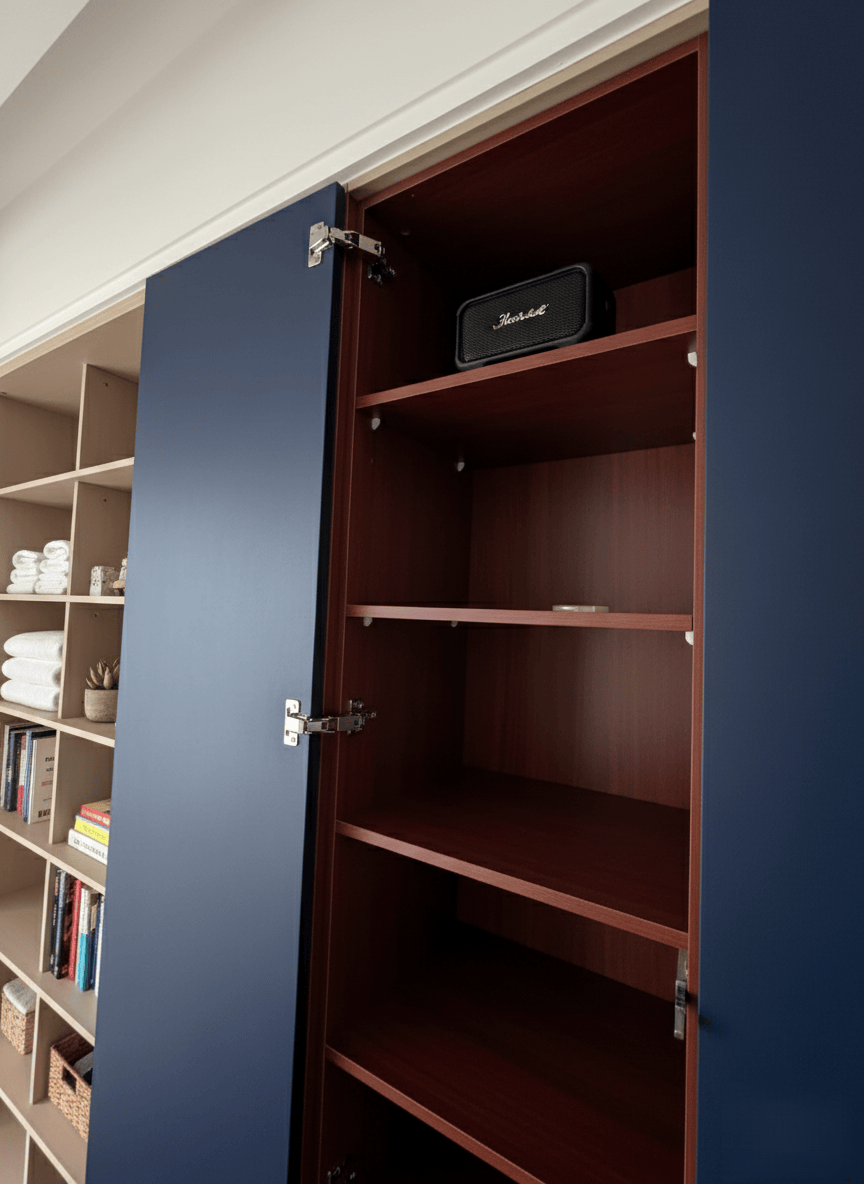

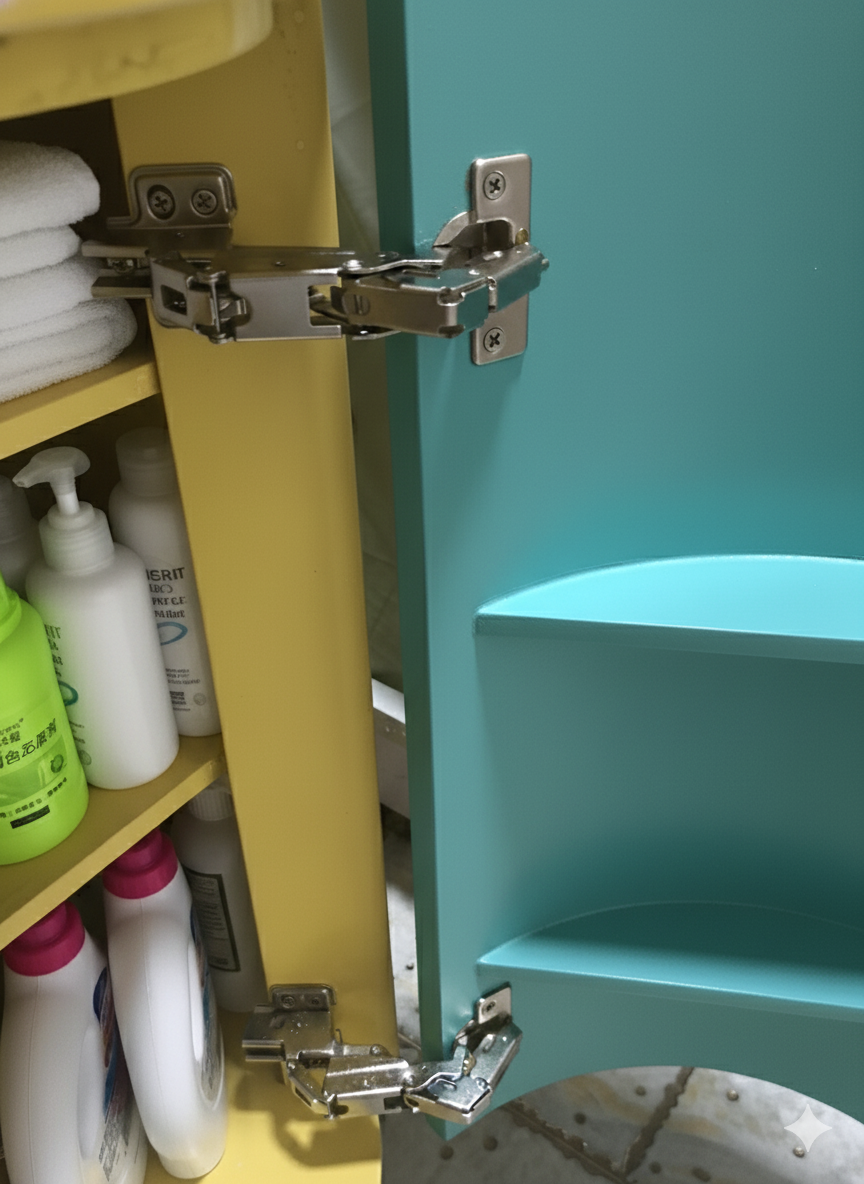

This 165-degree hinge series is suitable for corner cabinets, large-size doors, or inset doors, offering three arm types (Full Overlay, Half Overlay, and Inset/Large Crank) to fit different door thicknesses and installation spaces.
H1230 is a standard hinge with a fixed 4-hole base, non-soft-close and non-clip design; H1241SC is the premium soft-close model with hydraulic damping and clip-on base for smooth and quiet motion; H1228 is a single inset/large-crank variant featuring a raised plate H=9 with a fixed 2-hole base, non-clip and non-soft-close, providing extra clearance for inset applications.

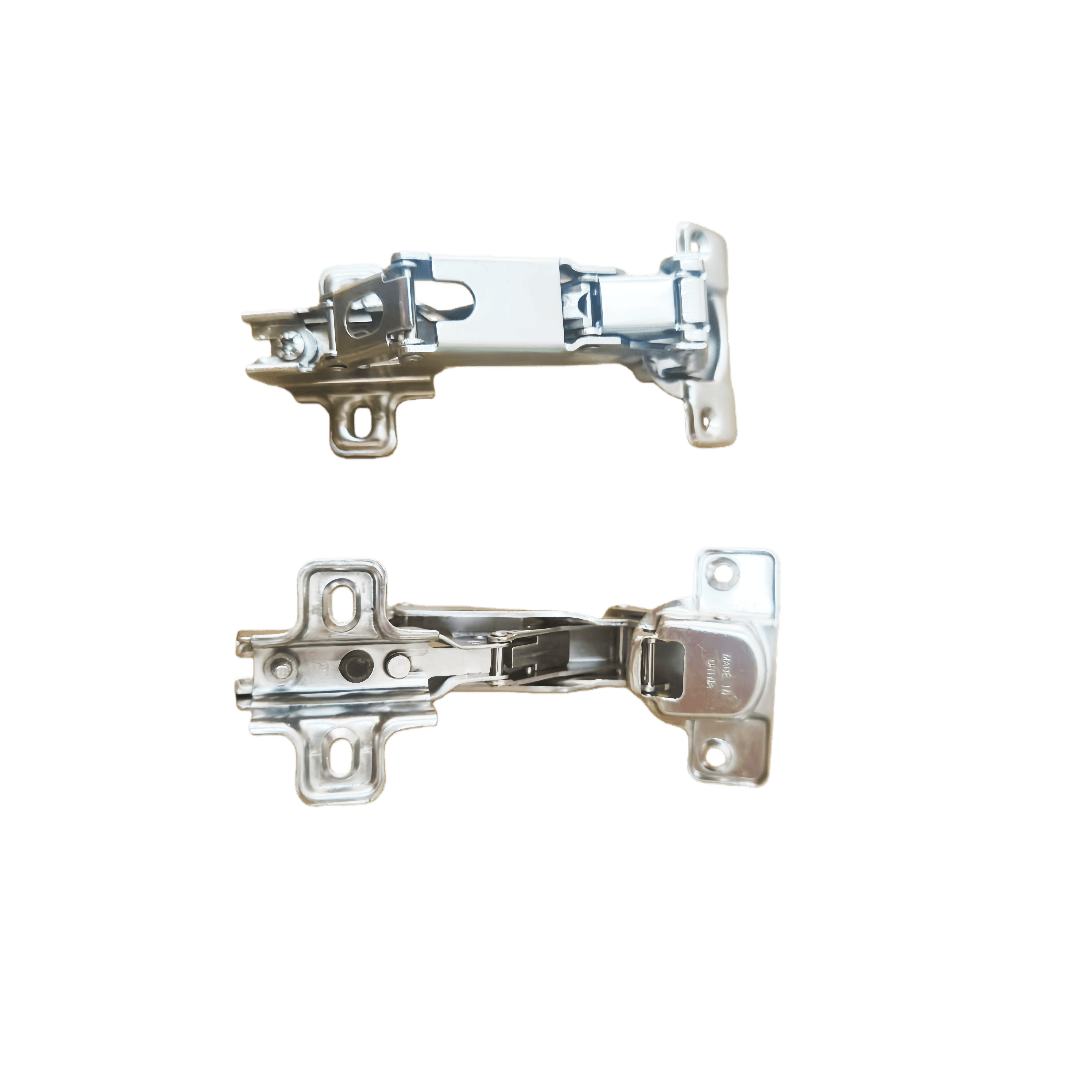

Three arm types (images shown using H1241SC as example)
-
Full Overlay / Straight Arm -
Half Overlay / Crank Arm -
Inset / Large Crank
| Model | Category | Mounting Base | Key Feature | Opening Angle | Cup Ø |
|---|---|---|---|---|---|
| H1230 | Standard Hinge | Fixed 4-hole base (non-clip) | Non-soft-close; stable and durable | 165° | φ35 mm |
| H1241SC | Soft-close Hinge | Clip-on 4-hole base | Hydraulic damping; quiet closing | 165° | φ35 mm |
| H1228 | Standard Hinge | Raised plate H=9, fixed 2-hole base (non-clip) | Non-soft-close; inset/large crank (single variant), increases clearance | 165° | φ35 mm |
| Feature | Description |
|---|---|
| 165° Wide Opening | Ideal for corner cabinets and large doors; provides full accessibility and reduced obstruction. |
| Multiple Arm Options | Full Overlay, Half Overlay, and Inset/Large Crank to match cabinet reveals and door thicknesses. |
| Corrosion-resistant Steel | Reinforced steel with anti-rust plating for long-term durability and stable alignment. |
| Soft-close System (H1241SC) | Built-in hydraulic damper slows closing and reduces impact and noise. |
| Fixed Base (H1230) | Non-clip fixed 4-hole base for stable mounting; suitable for standardized or cost-oriented installs. |
| Raised Plate H=9 (H1228) | Single inset/large-crank variant with raised plate and 2-hole base to increase clearance for inset doors. |
| Application | Description |
|---|---|
| Home Furniture | Kitchen, wardrobe, bathroom, and appliance cabinets. H1241SC for quiet closing; H1228 for inset clearance. |
| System & Office Cabinets | Suited to modular production or on-site installation. Clip-on (H1241SC) speeds installation; fixed bases (H1230/H1228) ensure stability. |
| Commercial Display | Works with glass or wooden doors; maintains smooth motion. H1228 increases inset door clearance. |
