| Item | Details |
|---|---|

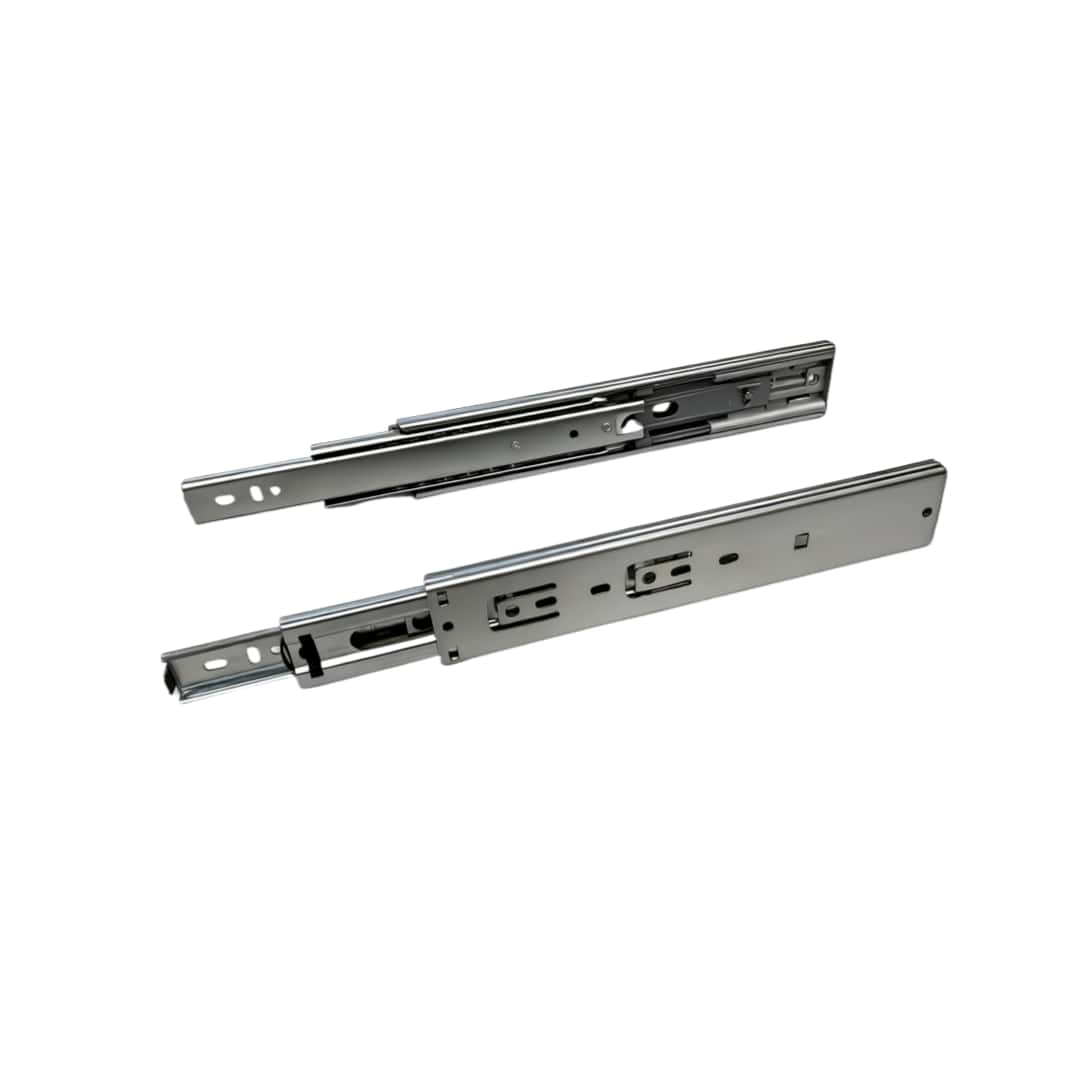

| Product Name | 3-Section Single-Row Push-to-Open Drawer Slide (Full Extension) |
| Width | W45 (45 mm) |
| Standard Lengths | 8"–24" (200–600 mm, 9 sizes) |
| Material / Structure | SPCC Cold-Rolled Steel; Single-Row Ball Bearings; Push-to-Open Mechanism |
| Finish | Black Electrophoresis / Clear Zinc |
| Extension Type | Full Extension (3-Section) |
| Function | Press to open and release; close manually to the end |
| Typical Load (evenly distributed) | ~30 kg / pair (reference value; see disclaimer) |
| Durability Test | 50,000 full-extension cycles (reference) |
| Item | Details |
|---|---|
| Product Name | 3-Section Single-Row Push-to-Open Drawer Slide (Full Extension) |
| Width | W45 (45 mm) |
| Standard Lengths | 8"–24" (200–600 mm, 9 sizes) |
| Material / Structure | SPCC Cold-Rolled Steel; Single-Row Ball Bearings; Push-to-Open Mechanism |
| Finish | Black Electrophoresis / Clear Zinc |
| Extension Type | Full Extension (3-Section) |
| Function | Press to open and release; close manually to the end |
| Typical Load (evenly distributed) | ~30 kg / pair (reference value; see disclaimer) |
| Durability Test | 50,000 full-extension cycles (reference) |
| Material Thickness (Outer + Middle + Inner) |
|---|
| 1.0 * 1.0 * 1.2 mm |
| 1.2 * 1.2 * 1.4 mm |
| 1.2 * 1.2 * 1.5 mm |
| Standard Lengths (Inch｜mm) | ||
|---|---|---|
| 8"｜200 mm | 10"｜250 mm | 12"｜300 mm |
| 14"｜350 mm | 16"｜400 mm | 18"｜450 mm |
| 20"｜500 mm | 22"｜550 mm | 24"｜600 mm |
| Key Features | Details |
|---|---|
| Push-to-Open Design | Press to release and open; close manually to the end |
| 3-Section Full Extension | Allows drawer to be fully extended for easy access |
| Single-Row Ball Bearings | Smooth sliding, simple structure, cost-effective |
| Multiple Thickness Options | 1.0*1.0*1.2 ｜ 1.2*1.2*1.4 ｜ 1.2*1.2*1.5, balancing strength and cost |
| Surface Finish | Black electrophoresis (durable, elegant) / Clear zinc (corrosion resistant, economical) |
Disclaimer & Usage Notes:
- Load Capacity: ~30 kg/pair is a typical reference under evenly distributed load, not a guaranteed value. Actual load depends on drawer size, slide length, thickness, installation accuracy, and usage conditions.
- Operation: Push-to-open function requires pressing to activate release. Closing requires manual push to the end. Avoid excessive force to prolong lifespan.
- Durability: 50,000 cycles is a reference lab test. Actual lifespan varies with frequency, load distribution, and assembly quality.
- Color Variation: Black electrophoresis / Clear zinc finishes may vary slightly due to batch differences or display settings. Actual product prevails.
- Rights Reserved: Specifications and supply conditions are subject to change per order requirements. Final interpretation belongs to the manufacturer.
