Product Specifications
| Item |
Details |
| Product Name |
Bed Post Insert Nut with Spring |
| Model No. |
D1017 |
| Size |
5/16" Internal Thread × Length 25 mm |
| Finish |
Zinc Plated |
| Components |
Insert Nut ×1, Spring ×1 |
| Application |
Wooden bed posts, bed legs, side rails, Knock-down bed frames |
Product Description

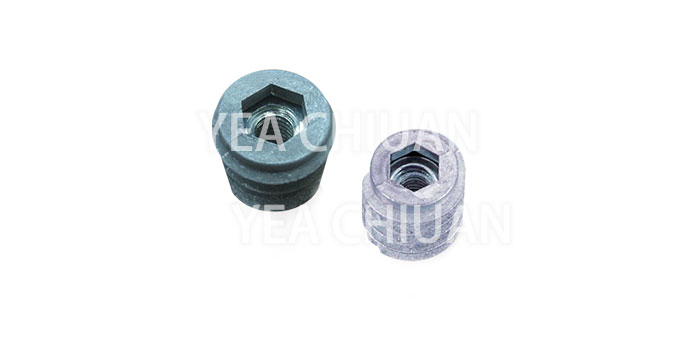

The D1017 Bed Post Insert Nut is designed for wooden bed frames requiring strong, reliable, and removable threaded connections. It features a 5/16" internal thread, a 25 mm length, and a zinc-plated finish that provides basic corrosion resistance for indoor furniture applications.
The outer surface includes ringed gripping ribs, allowing the insert nut to be pressed or tapped securely into pre-drilled holes. This set also includes a spring, which provides pre-load and vibration resistance to minimize loosening or squeaking during prolonged use.
Commonly used with bed bolts, connector bolts, and other 5/16" fasteners in bed frame construction.
Application Range
Suitable For
| Wooden bed posts |
| Wooden bed legs |
| Side rails & cross-beam joints |
| Knock-down (KD) bed frame structures |
| Furniture requiring repeated assembly |
Recommended Materials
| Solid wood |
| Laminated wood |
| Plywood / engineered wood (with proper pre-drilling) |
Installation Notes
| Pre-drill to the correct diameter and depth |
| Press or tap the insert nut into the hole |
| Assemble with the spring and mating connector bolt |
Disclaimer
- All specifications and information are for reference only. Final confirmation shall be based on actual samples and approved drawings.
- Load capacity depends on wood type, drilling accuracy, installation tools, and real usage conditions. No absolute safety is guaranteed.
- Color tone and plating appearance may vary by batch, lighting, or device display and are not considered defects.
- Measured dimensions may include reasonable tolerances. Users must verify compatibility before installation.
- Not suitable for life-safety, human-lifting, or high-risk applications. Professional engineering assessment is required for special uses.
- Users are responsible for following local regulations and proper installation procedures. Damages caused by misuse or incorrect installation are not covered.
