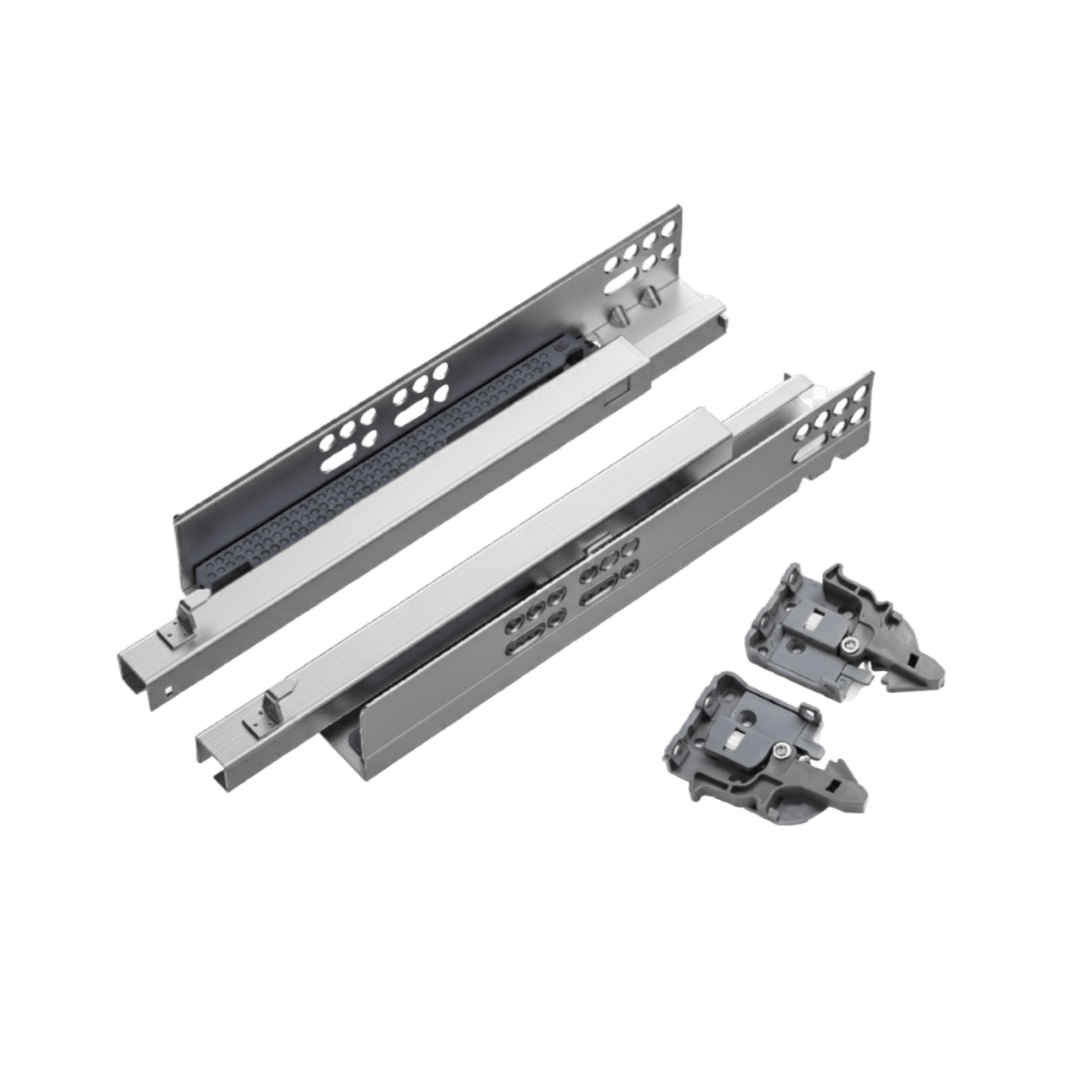

Product Specs｜G2002 2-Section Concealed Soft-Close Slide (Handle Version)

Structure / Type	2-section (partial extension, approx. 2/3) / Soft-Close / Handle-operated (non push-to-open)
Nominal Length	12″–24″ (300–600 mm)
Side Panel Thickness	18 mm; ≤16 mm requires 16 mm version; above 18 mm recommend engineering/custom version
Material / Finish	Cold-rolled steel / Zinc-plated (silver)
Thickness (Body)	1.2 mm + 1.2 mm
Rated Load	Varies by length, drawer width and installation accuracy (for engineering estimation)
Accessories	Front locking devices (one each side), quick-release and front panel adjustment; rear brackets/positioners as needed

Size Range

12" (300) 14" (350) 16" (400) 18" (450) 20" (500) 22" (550) 24" (600)

📌 For more options, please check full product details

Product Specs｜G2002 2-Section Concealed Soft-Close Slide (Handle Version)

Structure / Type	2-section (partial extension, approx. 2/3) / Soft-Close / Handle-operated (non push-to-open)
Nominal Length	12″–24″ (300–600 mm)
Side Panel Thickness	18 mm; ≤16 mm requires 16 mm version; above 18 mm recommend engineering/custom version
Material / Finish	Cold-rolled steel / Zinc-plated (silver)
Thickness (Body)	1.2 mm + 1.2 mm
Rated Load	Varies by length, drawer width and installation accuracy (for engineering estimation)
Accessories	Front locking devices (one each side), quick-release and front panel adjustment; rear brackets/positioners as needed

Size Range

12" (300) 14" (350) 16" (400) 18" (450) 20" (500) 22" (550) 24" (600)

📌 For more options, please check full product details

Key Features	Selection & Installation Rules	Accessory Suggestions
・Soft-close mechanism, quiet and stable. ・Concealed undermount design, no visible side rail. ・2-section partial extension (approx. 2/3 travel). ・Handle-operated (non push-to-open).	・Standard for 18 mm side panels; ≤16 mm requires 16 mm version; >19 mm please consult for engineering/custom solutions. ・Drawer side, back, and bottom panel sizes and drilling must follow the installation diagram. ・Load rating depends on length, drawer width, material and installation accuracy; verify with on-site testing. ・Recommended for normal indoor environments; not suitable for high corrosion or heavy dust.	・Front locking devices (per length). ・Rear brackets or positioning clips (depending on cabinet). ・Standard system cabinet screws, follow installation diagram.

Application	Drawer Size Recommendation	Alternative Options
Kitchens, bathroom vanities, wardrobes, desks, office storage, general load drawers	Drawer depth ≤ nominal slide length; allow clearances per installation guide	For full extension choose 3-section slides; for handle-free design choose push-to-open undermount

Disclaimer & Notes (Please Read Carefully)
1) This model is designed for 18 mm side panels (handle version). For ≤16 mm, use the 16 mm version; for >18 mm consult engineering/custom solutions. 2) 2-section slides provide “partial extension” (~2/3 travel); for full extension, choose 3-section type. 3) Load ratings are based on laboratory test conditions; actual load capacity depends on slide length, drawer width, material, fasteners, installation accuracy, and environment. On-site testing is required before mass use. 4) Soft-close damper is a consumable part; service life depends on usage frequency and environment (humidity, dust, grease, salt spray). Not recommended for highly corrosive or dusty areas. 5) Installation must follow the corresponding drilling and mounting diagram. Different brands or batches may have tolerance differences; avoid mixing parts. 6) Images and dimensions are for reference only. Specs may change without prior notice. Final specs are as per quotation or delivery note. 7) Maintenance: regularly check for loose screws, abnormal sliding, or damper wear; replace when necessary.

Disclaimer & Notes (Please Read Carefully)

1) This model is designed for 18 mm side panels (handle version). For ≤16 mm, use the 16 mm version; for >18 mm consult engineering/custom solutions.
2) 2-section slides provide “partial extension” (~2/3 travel); for full extension, choose 3-section type.
3) Load ratings are based on laboratory test conditions; actual load capacity depends on slide length, drawer width, material, fasteners, installation accuracy, and environment. On-site testing is required before mass use.
4) Soft-close damper is a consumable part; service life depends on usage frequency and environment (humidity, dust, grease, salt spray). Not recommended for highly corrosive or dusty areas.
5) Installation must follow the corresponding drilling and mounting diagram. Different brands or batches may have tolerance differences; avoid mixing parts.
6) Images and dimensions are for reference only. Specs may change without prior notice. Final specs are as per quotation or delivery note.
7) Maintenance: regularly check for loose screws, abnormal sliding, or damper wear; replace when necessary.
