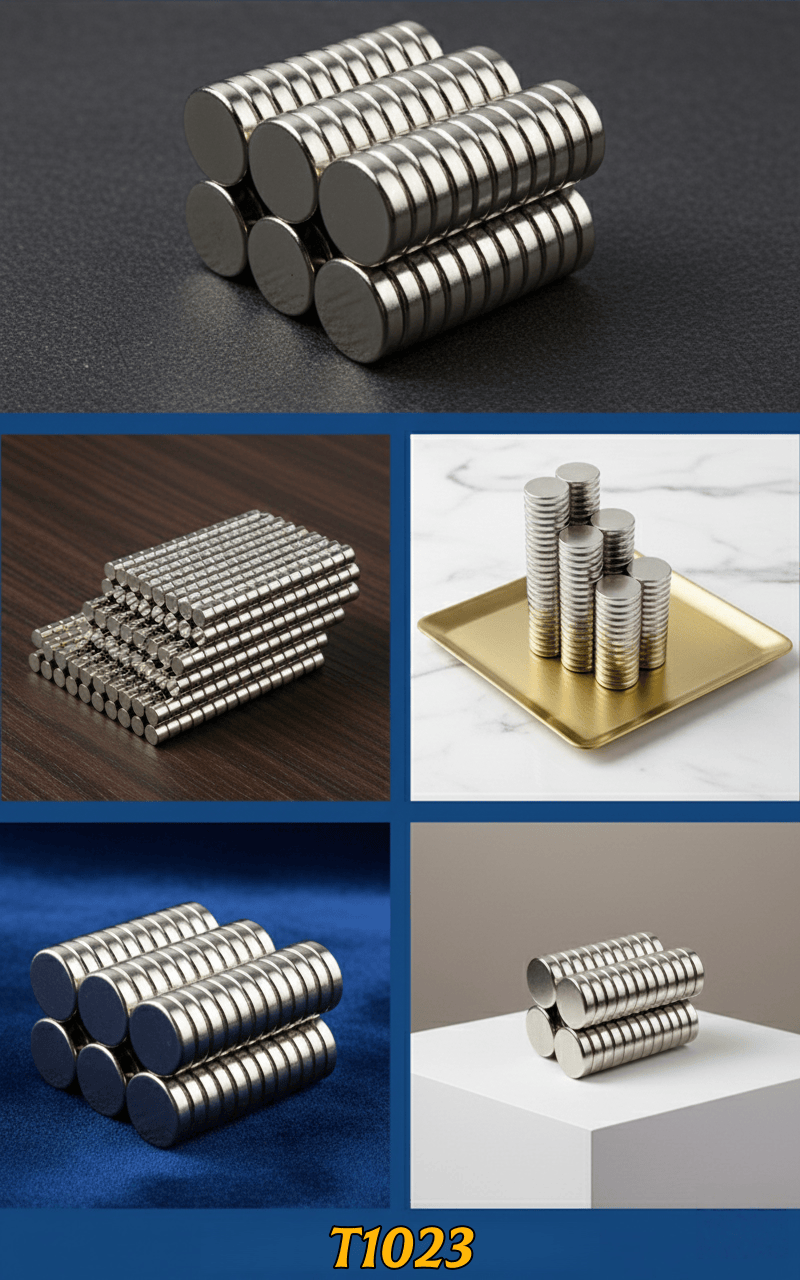

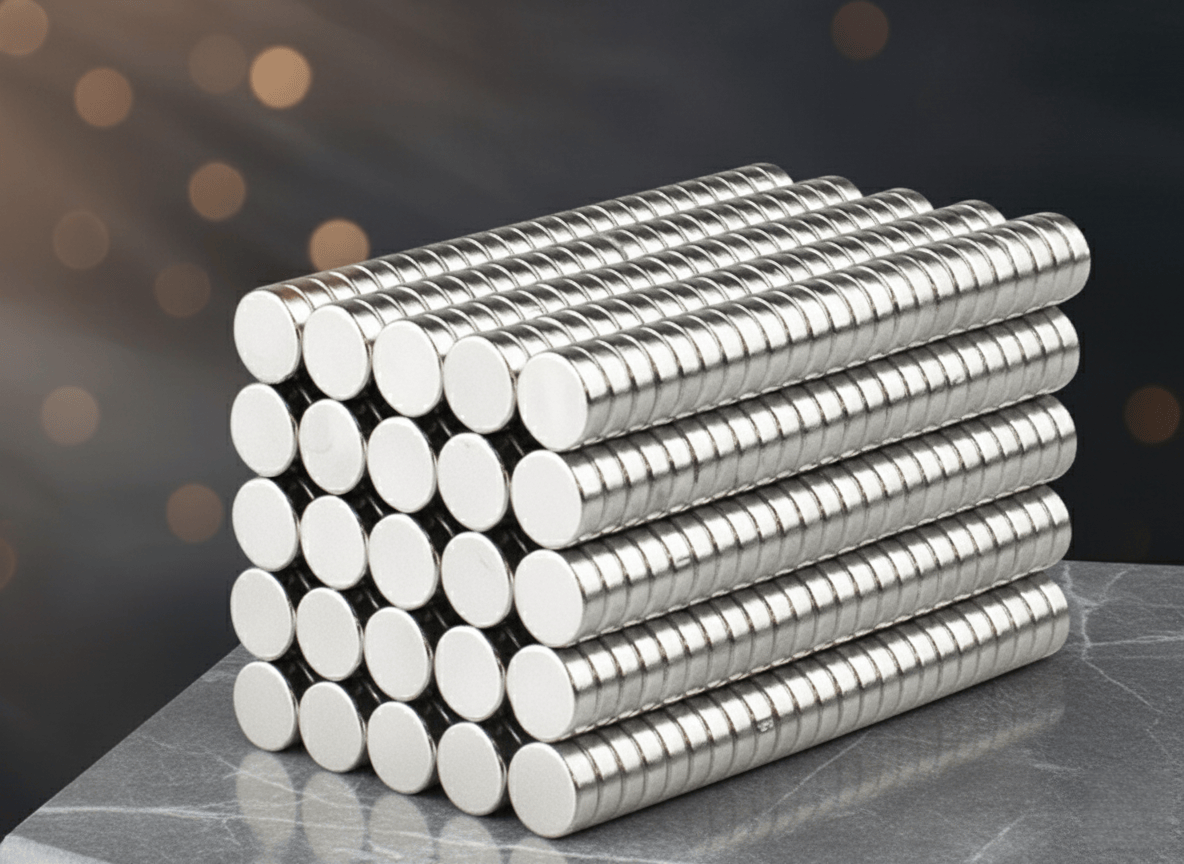

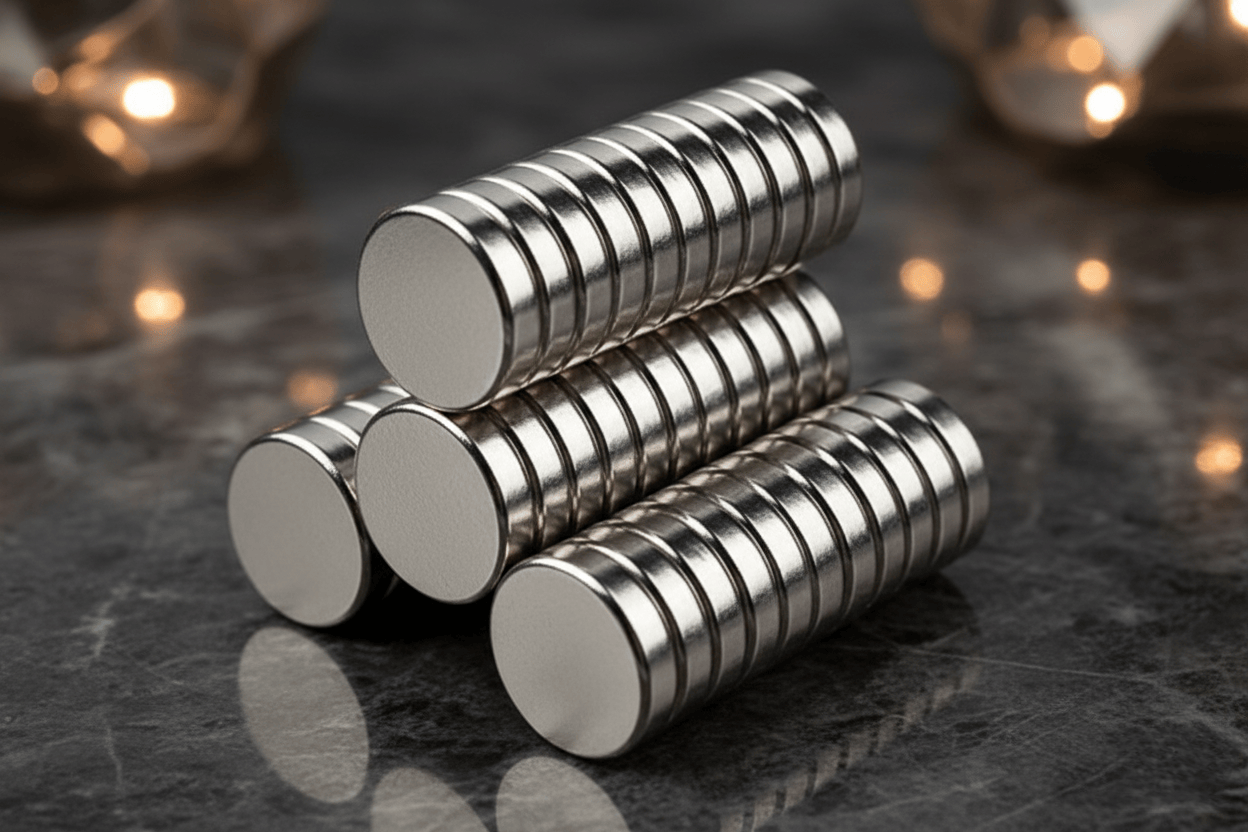

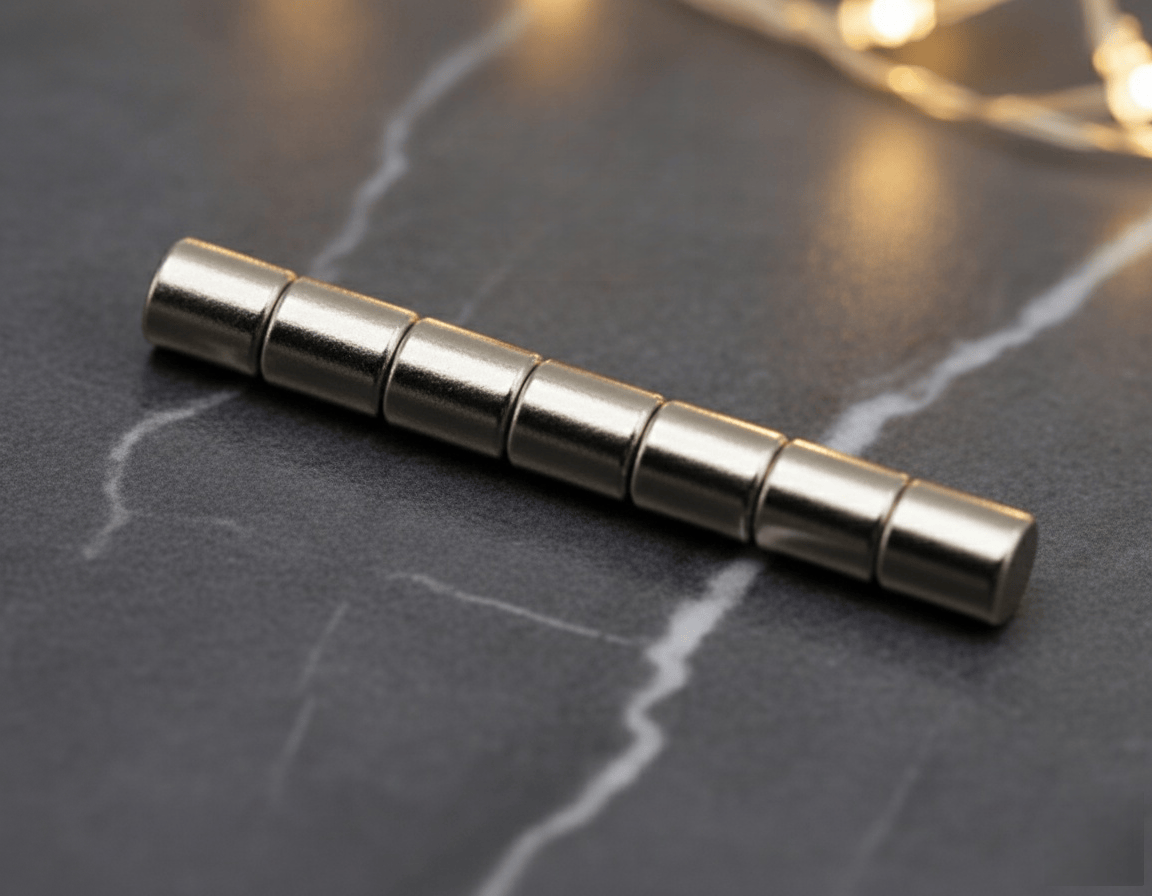

| Product Name | Neodymium Strong Magnet (Standard T1023 / Grooved T1023B) |
|---|---|
| Material | Neodymium Rare Earth Magnet (NdFeB) |

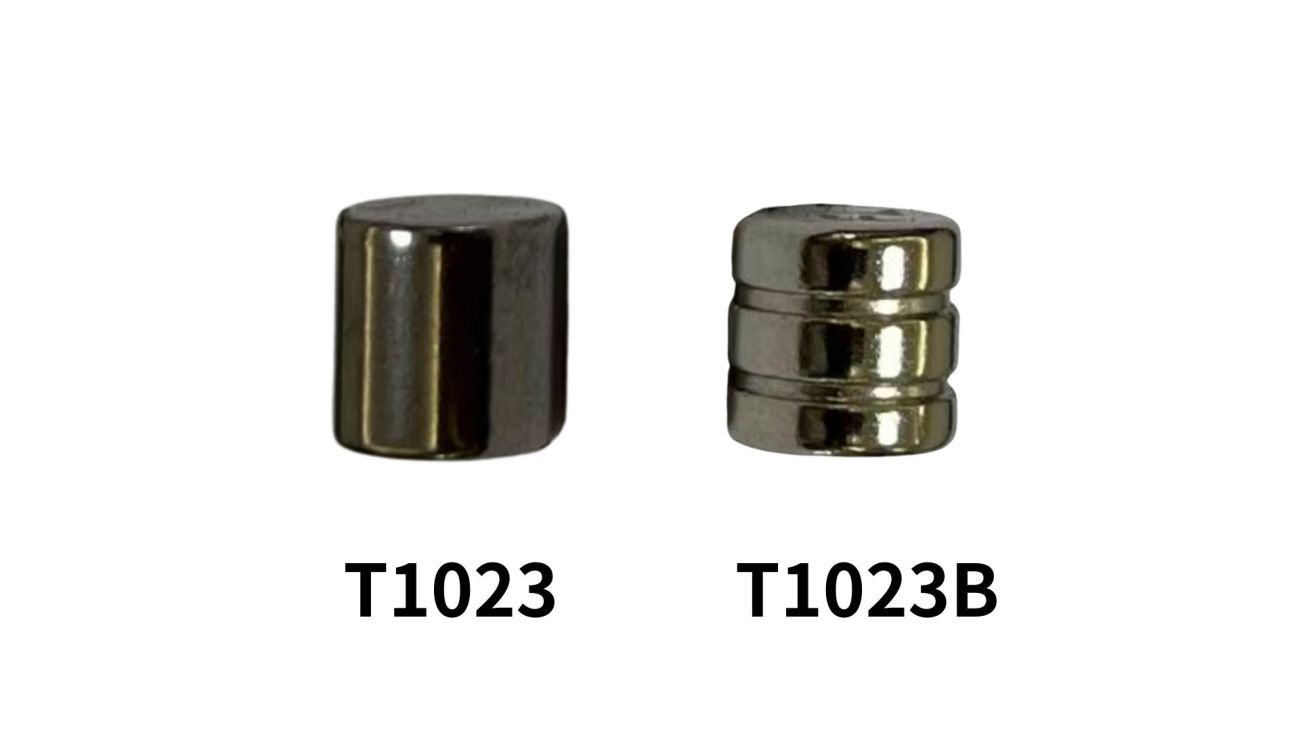

| Available Sizes | T1023: 10×5mm, 10×10mm, 12×15mm T1023B: 10×10mm, 6×13mm |
| Features | Extremely strong magnetic force, compact size; grooved type offers more secure mounting |
| Applications | Furniture door catches, cabinet fixing, electronic components, industrial magnetic fixtures |
The T1023 / T1023B Neodymium Strong Magnet is made from rare earth neodymium material, offering extremely strong magnetic force in a compact size. The T1023 is the standard version suitable for general furniture and industrial applications, while the T1023B grooved version is designed for embedded and more secure installations, ideal for concealed or high-stability applications.
-
Furniture door catches and cabinet fixing
-
Electronic component positioning and assembly
-
Industrial magnetic fixtures
-
DIY or customized design applications
| Magnet Type | Main Composition | Magnetic Strength | Temperature Resistance | Cost | Common Applications |
|---|---|---|---|---|---|
| Neodymium (NdFeB, Rare Earth Magnet) | Neodymium (Nd) + Iron (Fe) + Boron (B) | ★★★★★ (Strongest) | 80℃–200℃ (depending on grade) | Medium | Motors, hard drives, speakers, medical devices, wind turbines |
| Samarium Cobalt (SmCo) | Samarium (Sm) + Cobalt (Co) | ★★★★☆ | 250℃–350℃ (high resistance) | High | Aerospace, defense, high-temperature motors, sensors |
| Alnico (AlNiCo) | Aluminum (Al) + Nickel (Ni) + Cobalt (Co) | ★★★☆☆ | 450℃–550℃ (very high) | Medium–High | Guitar pickups, meters, traditional motors |
| Ferrite (Ceramic Magnet) | Iron Oxide (Fe₂O₃) + Barium/Strontium | ★☆☆☆☆ (Weakest) | 200℃–300℃ | Low | Loudspeakers, fridge magnets, toys, small motors |
