| Model | Specification | Material | Surface Finish / Color |
|---|---|---|---|

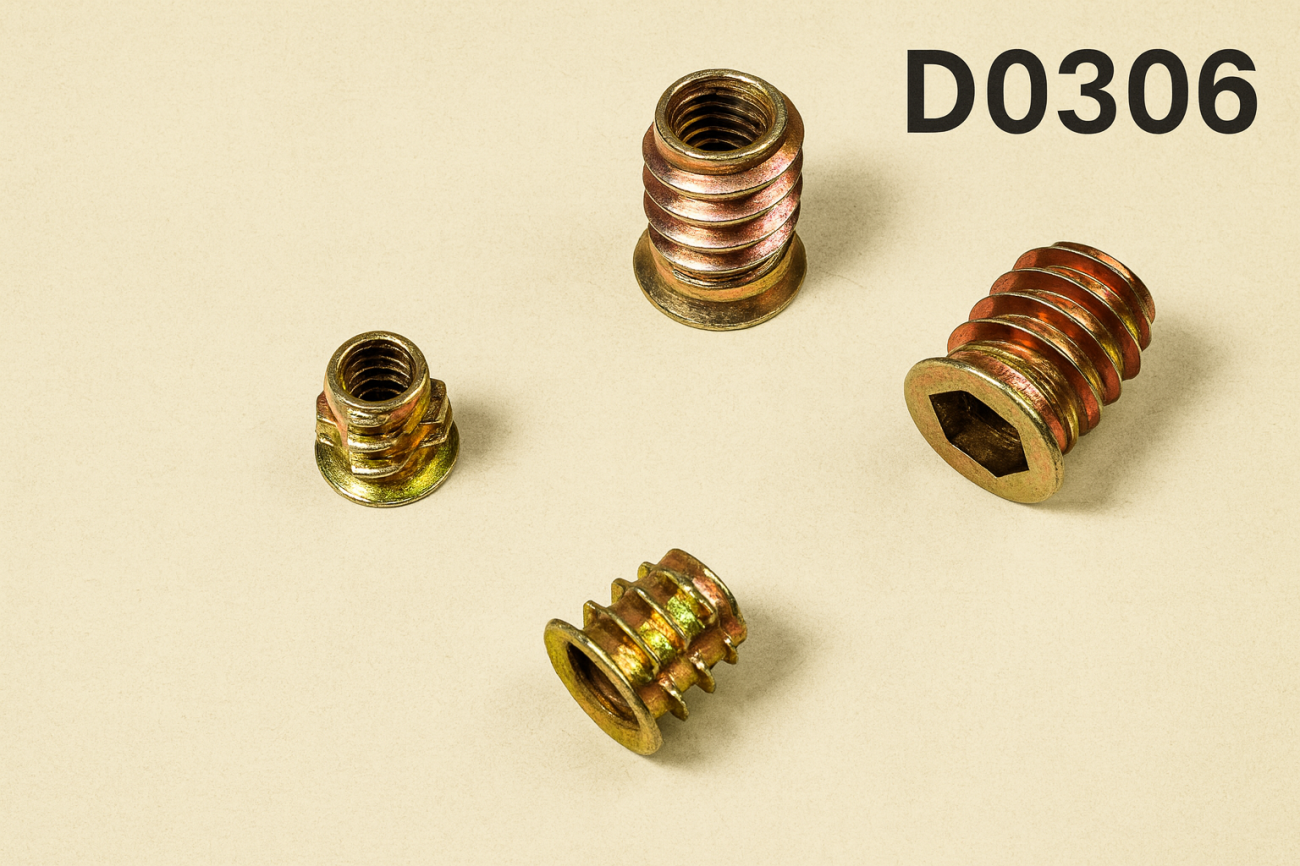

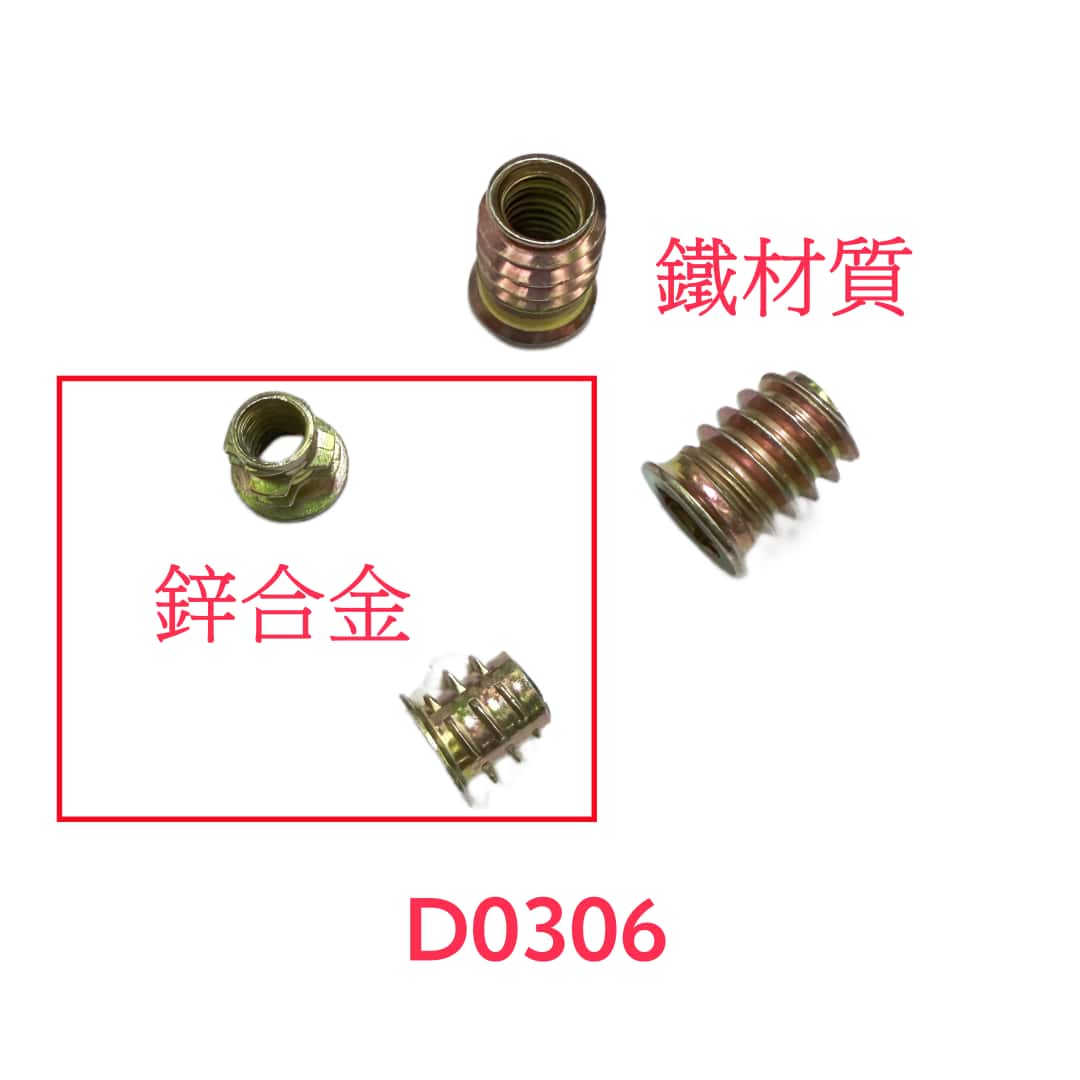

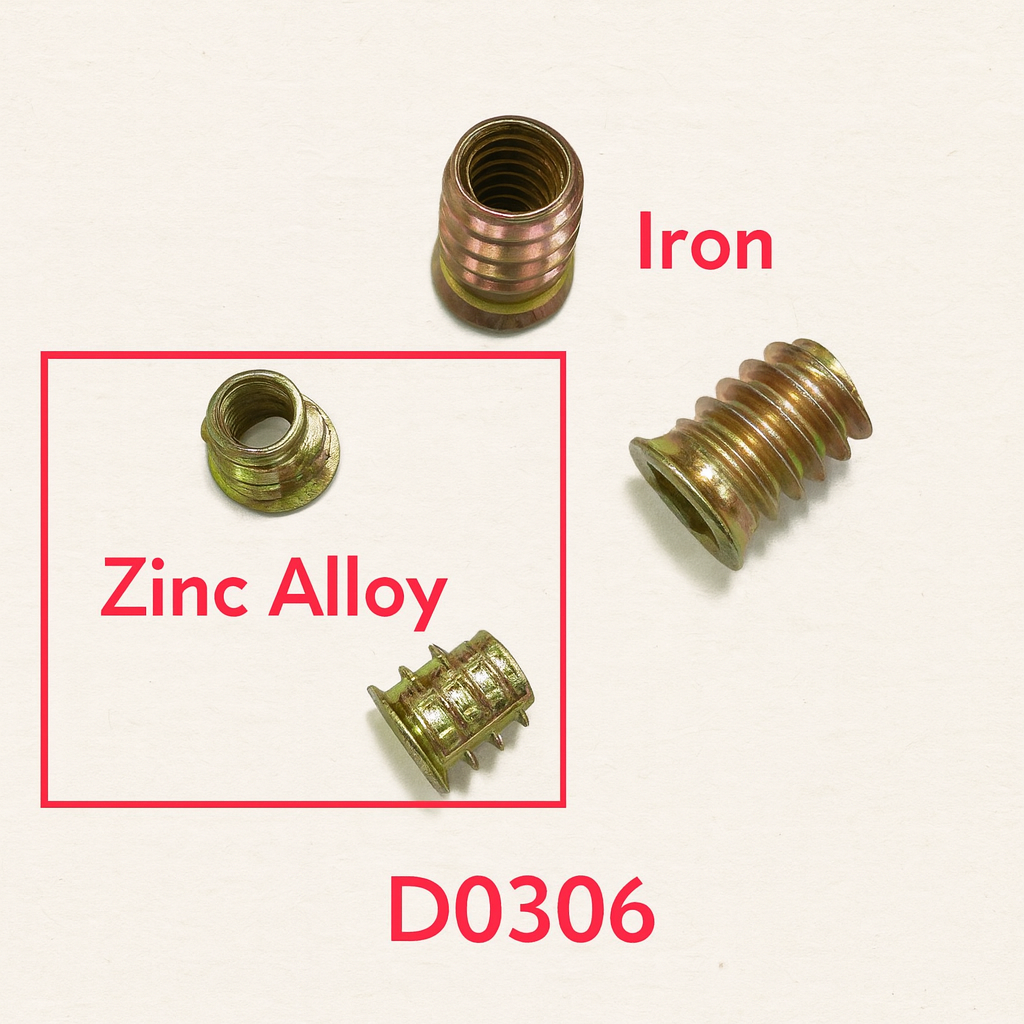

| D0306-1410 | Countersunk Hex Insert Nut 1/4 × 10 | Zinc Alloy | Multi-Color Zinc |
| D0306-1413 | Countersunk Hex Insert Nut 1/4 × 13 | Zinc Alloy | Multi-Color Zinc |
| D0306-51415R | Countersunk Hex Insert Nut with Collar 1/4 × 15 | Iron | Multi-Color Zinc |
| D0306-51613R | Countersunk Hex Insert Nut with Collar 5/16 × 13 | Iron | Multi-Color Zinc |
| D0306-51615R | Countersunk Hex Insert Nut with Collar 5/16 × 15 | Iron | Multi-Color Zinc |
| D0306-51617R | Countersunk Hex Insert Nut with Collar 5/16 × 17 | Iron | Multi-Color Zinc |
| D0306-51620 | Countersunk Hex Insert Nut with Collar 5/16 × 20 | Iron | Multi-Color Zinc |
| D0306-M620 | Countersunk Hex Insert Nut with Collar M6 × 20 | Iron | Multi-Color Zinc |
| D0306-M817R | Countersunk Hex Insert Nut with Collar M8 × 17 | Iron | Multi-Color Zinc |
| D0306-M820 | Countersunk Hex Insert Nut with Collar M8 × 20 | Iron | Multi-Color Zinc |
| Model | Specification | Material | Surface Finish / Color |
|---|---|---|---|
| D0306-1410 | Countersunk Hex Insert Nut 1/4 × 10 | Zinc Alloy | Multi-Color Zinc |
| D0306-1413 | Countersunk Hex Insert Nut 1/4 × 13 | Zinc Alloy | Multi-Color Zinc |
| D0306-51415R | Countersunk Hex Insert Nut with Collar 1/4 × 15 | Iron | Multi-Color Zinc |
| D0306-51613R | Countersunk Hex Insert Nut with Collar 5/16 × 13 | Iron | Multi-Color Zinc |
| D0306-51615R | Countersunk Hex Insert Nut with Collar 5/16 × 15 | Iron | Multi-Color Zinc |
| D0306-51617R | Countersunk Hex Insert Nut with Collar 5/16 × 17 | Iron | Multi-Color Zinc |
| D0306-51620 | Countersunk Hex Insert Nut with Collar 5/16 × 20 | Iron | Multi-Color Zinc |
| D0306-M620 | Countersunk Hex Insert Nut with Collar M6 × 20 | Iron | Multi-Color Zinc |
| D0306-M817R | Countersunk Hex Insert Nut with Collar M8 × 17 | Iron | Multi-Color Zinc |
| D0306-M820 | Countersunk Hex Insert Nut with Collar M8 × 20 | Iron | Multi-Color Zinc |
| Product Features | Installation Guide |
|---|---|
| Countersunk head design allows the nut to sit flush with the surface, providing a clean appearance and secure fastening. | Suitable for wood, particle board, MDF, and plastic. Can be installed manually or with dedicated tools. |
| Internal and external threads offer strong fastening and easy disassembly for repeated use. | Drill hole depth should be slightly greater than the insert length to ensure full flush mounting. |
| Multi-color zinc plating enhances corrosion resistance and visual appeal, suitable for both furniture and industrial applications. | Compatible with bolts, threaded rods, or other fastening systems for flexible assembly. |
| Application Industry | Main Purpose |
|---|---|
| Furniture Manufacturing, Interior Decoration, Hardware Assembly | Used for wood panel connections, reinforcement points, and detachable fastening joints |
