Available Standard Lengths
📏 Available Sizes for G0154 Slide Rail:
-
G0154-830-300
→ Rail Length: 830mm｜Center Leaf: 300mm｜Table ≤ 1200mm -
G0154-950-300
→ Rail Length: 950mm｜Center Leaf: 300mm｜Table 1200–1300mm -
G0154-1150
→ Rail Length: 1150mm｜Center Leaf: 350–400mm｜Table 1300–1800mm
| Model | Length | Center Leaf Range | Recommended Table Length (Closed): Fits tables with the following closed lengths: “Closed” means without center leaf extended. |
Suitable Table Type |
|---|---|---|---|---|
| G0154-830-300 | 830mm | 300mm | ≤ 1200mm | Compact Dining Table |
| G0154-950-300 | 950mm | 300mm | 1200–1300mm | Medium Dining Table |
| G0154-1150 | 1150mm | 350–400mm | 1300–1800mm | Large Extendable Table |
Product Description

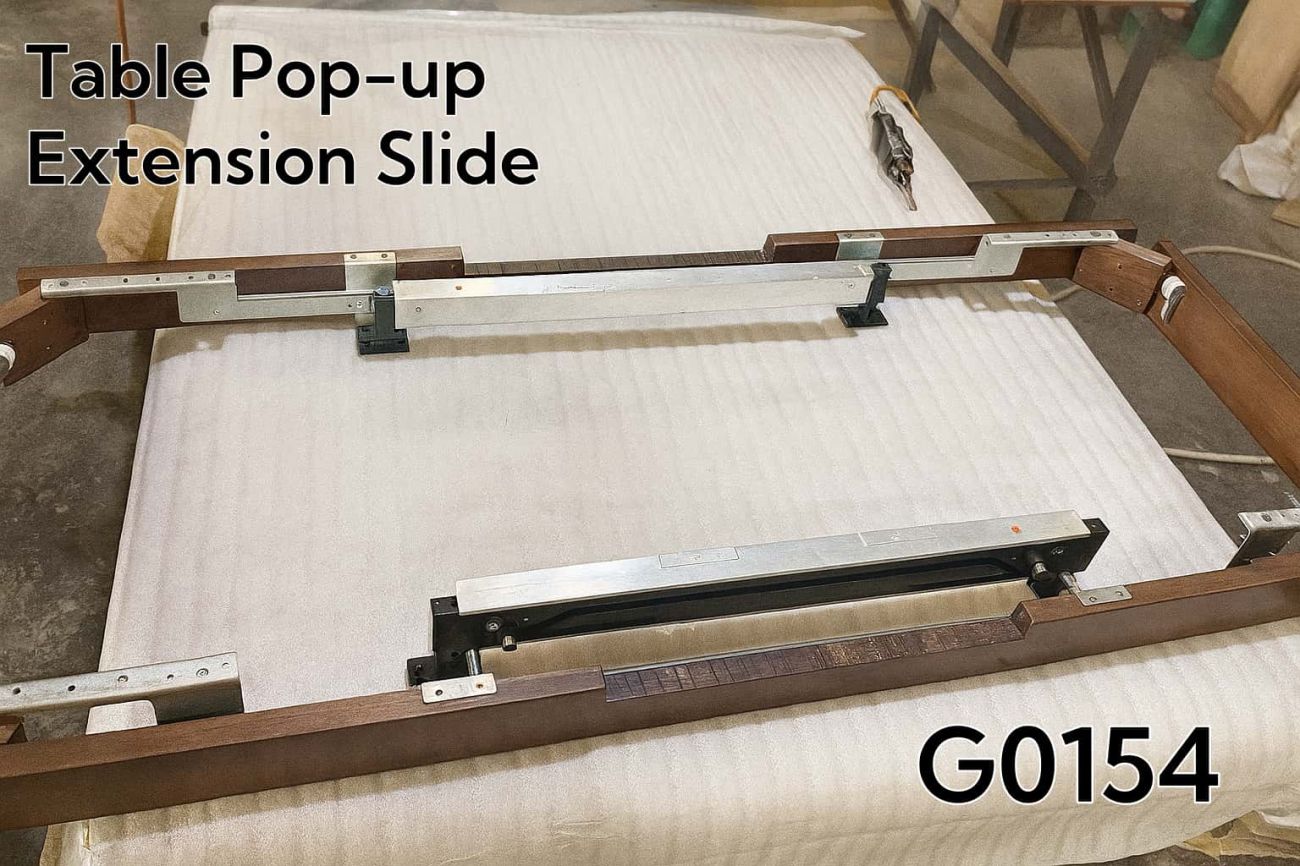

The G0154 slide is a 3-section automatic flip-up mechanism, designed specifically for extendable and folding tables. With a spring-assisted center leaf mechanism, both outer rails push the central panel up during extension, allowing for a smooth, automatic surface expansion.
Constructed from cold-rolled steel and equipped with precision ball bearings, this rail ensures smooth glide, anti-rust coating, and long-term durability. The product comes in three size options to match varying table lengths and panel configurations.
Applications include:
-
Folding dining tables
-
Extendable meeting tables
-
Modular workstations and more
Custom OEM/ODM solutions are available upon request.
Application Scenarios
-
Folding Dining Tables
-
Extendable Conference Tables
-
Multi-section Desks
-
Modular Education/Experiment Tables
-
Temporary Booth Extensions or Trade Show Tables
This slide rail is highly suitable for furniture makers seeking automatic positioning and central expansion support.
All specifications, recommended table length ranges, and installation suggestions for the G0154 slide rail are for general reference only. Actual performance and compatibility depend on your table structure, usage environment, and mounting method.
Please consult with technical personnel before placing orders or installing.
The supplier shall not be liable for any damage, misuse, or loss caused by incorrect application or improper installation.
