Spring Wire Diameter: 2.6 / 2.8 / 3.0 / 3.2 / 3.5 mm
Spring Colors: Iridescent, Blue Zinc

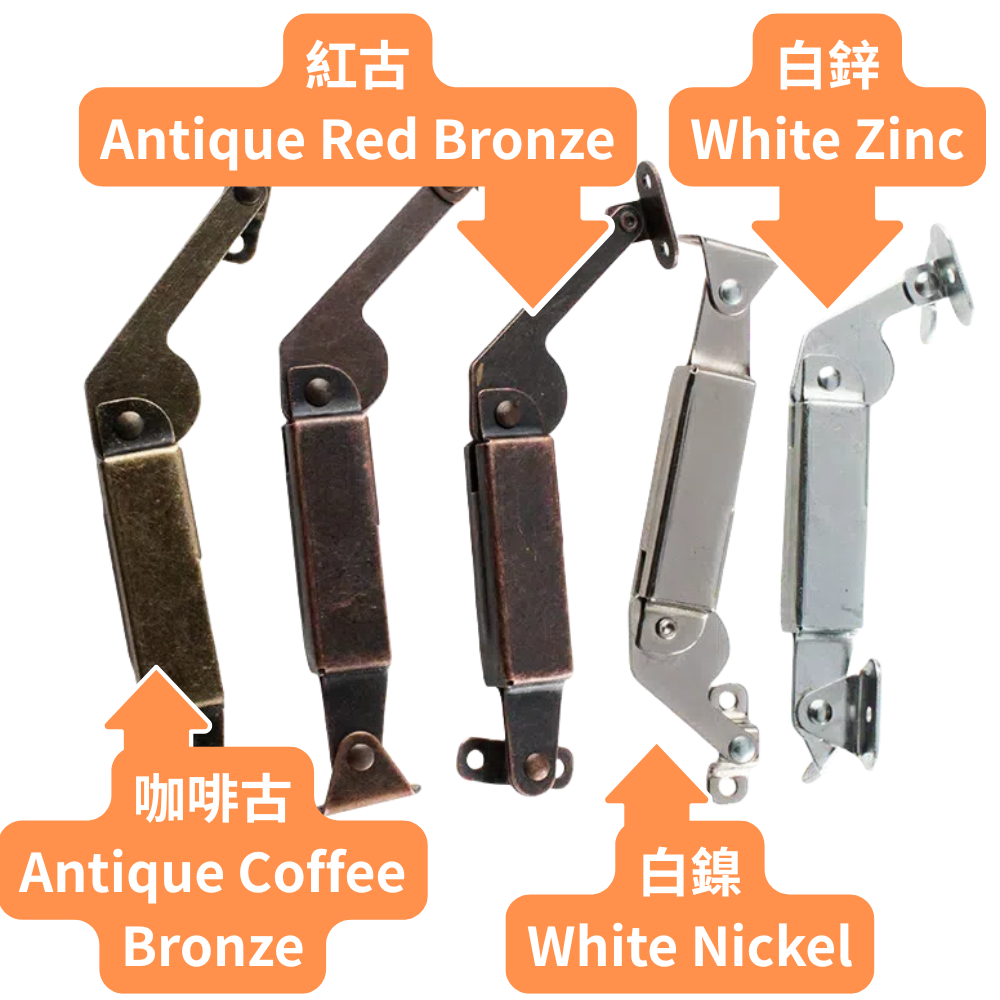

Plating Options: White Zinc, Blue Zinc, White Nickel, Antique Red Bronze, Antique Coffee Bronze, Black Coffee Bronze
Structure Types: Left + Single Ear; Right + Single Ear; Double Support + Double Ear
| Model | Length | Remarks |
|---|---|---|
| V0290S | 56mm | — |
| V0290M | 80mm | Old label was L |

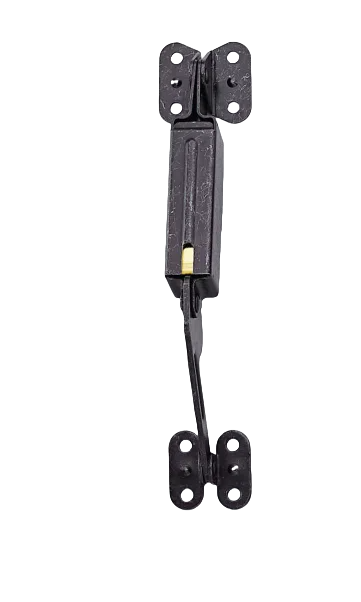

| V0290L | 120mm | Standard L |
※ Shared specifications include spring wire diameter / spring colors / plating options / structure types. Models only differ in length. The former “L” label for the 80mm version has been standardized to “M”.
Spring Wire Diameter: 2.6 / 2.8 / 3.0 / 3.2 / 3.5 mm
Spring Colors: Iridescent, Blue Zinc
Plating Options: White Zinc, Blue Zinc, White Nickel, Antique Red Bronze, Antique Coffee Bronze, Black Coffee Bronze
Structure Types: Left + Single Ear; Right + Single Ear; Double Support + Double Ear
| Model | Length | Remarks |
|---|---|---|
| V0290S | 56mm | — |
| V0290M | 80mm | Old label was L |
| V0290L | 120mm | Standard L |
※ Shared specifications include spring wire diameter / spring colors / plating options / structure types. Models only differ in length. The former “L” label for the 80mm version has been standardized to “M”.
Structure Types
Left + Single Ear
Right + Single Ear
Double Support + Double Ear
FAQ
Q1: Why use spring-loaded hardware?
It provides controlled lifting and damping, preventing sudden lid drops and reducing injury risk while extending furniture lifespan.
Q2: Suitable applications?
Ottomans, storage cabinets, under-bed storage, and lift-top tables—any furniture requiring stable opening/closing.
Q3: Available sizes?
56mm, 80mm, and 120mm. Choose per cabinet size and load.
Q4: Colors & finishes?
Springs: Iridescent, Blue Zinc. Plating: White Zinc, Blue Zinc, White Nickel, Antique Red Bronze, Antique Coffee Bronze, Black Coffee Bronze.
Application Description
The V0290 series is a spring-loaded safety support for cabinet doors and panels. Available for left-side, right-side, or center (dual ear) mounting, it provides structural stability and basic opening assistance.
Suitable for:
-
Overhead flaps
-
Drop-down doors
-
Display case lids
-
Industrial cabinet covers
